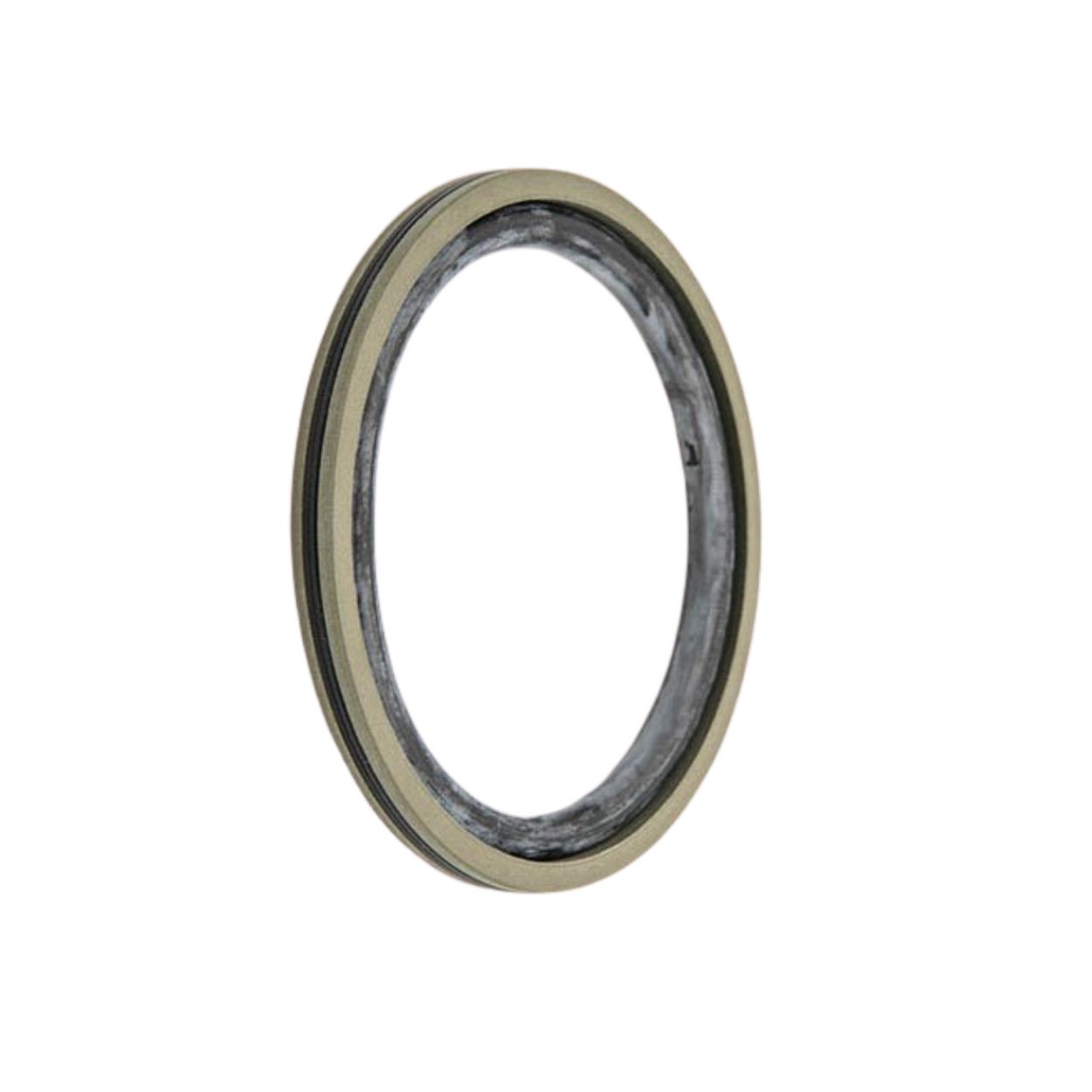

PQ: 3 part composite double acting seal
Материал	Скорость m/s	Температура °C	Давление Mpa


Ptfe/Bronze/Nbr	2	-30 +120	40

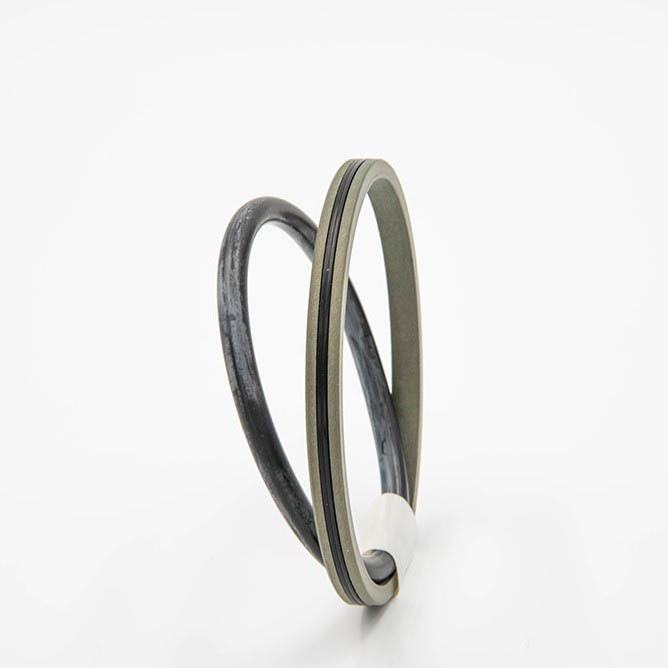

PQ seal is composed of 3 parts: the structure of the seal in PTFE+BRONZE, the x-ring which grants external sealing and the o-ring which energize the seal.

It's a double effect seal for hydraulic cylinders. Temperature and chemical compatibility depend on o-ring/x-ring material.

It is recommended to support the seal with at least 2 guide rings in cylinders with a high stroke lenght and 1 guide ring in short stroke cylinders.

It is higly recommended to respect the rules and to be careful during parts assembling to avoid damaging the seal. We suggest using our tools.

PQ взаимозаменяемый с: AQ-SEAL - NPQ1 - 32

Скачать каталог

видео

Сопутствующие аксессуары
CONO ALLARGA PTFE 40/250

Ordina per:

Свободна.:

Марка:

Специальная цена:

Описание	Размеры(мм)	Материал	Свободна. (UN)
NPQ1 16 N3-031 NBR+XR 201/014 D.016x005x4,2 01.PQ020.016005	16,00 - 5,00 - 4,20 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 20 N3-032 NBR+XR 203/017 D.020x009x4,2 01.NPQ10.020009	20,00 - 9,00 - 4,20 chiudi	Ptfe/carbon/nbr	-
NPQ1 32 N3-031 NBR+XR 2-211/024 D.032x021x4,2 01.NPQ10.032021	32,00 - 21,00 - 4,20 chiudi	Ptfe/Bronze/Nbr	-
PQ 1200320-46N D.032x021x4,2 01.PQ020.032021	32,00 - 21,00 - 4,20 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 35 N3-031 NBR+XR 2-213/026 D.035x024x4,2 01.NPQ10.035024	35,00 - 24,00 - 4,20 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 40 N3-031 NBR+XR 216/029 D.040x029x4,2 01.NPQ10.040029	40,00 - 29,00 - 4,20 chiudi	Ptfe/Bronze/Nbr	109
PQ0100400 D.040x030x6,3 01.PQ000.040030	40,00 - 30,00 - 6,30 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 50 N4-031 FKM+XR 324/032 D.050x034,50x6,3 01.NPQ1V.050034	50,00 - 34,50 - 6,30 chiudi	Ptfe/Bronzo/Viton	8
NPQ1 50 N4-277 FKM+XR 324/032 D.050x034,50x6,3 01.NPQ1V.050346	50,00 - 34,50 - 6,30 chiudi	Ptfe/Bronzo/Viton	-
17PQ1400500-T46N D.050x039x4,2 01.PQ000.050039	50,00 - 39,00 - 4,20 chiudi	Ptfe/Bronze/Nbr	-
XPQ1 N-031 NBR D.050,80x035,00x7,3 01.XPQ10.0508357	50,80 - 35,00 - 7,30 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 55 N3-277 NBR+XR 224/033 D.055x044x4,2 01.NPQ10.055044	55,00 - 44,00 - 4,20 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 60 N4-031 NBR+XR 327/035 D.060x044,50x6,3 01.NPQ100.060044	60,00 - 44,50 - 6,30 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 63 N4-031 + XR 328/035 D.063x047,50x6,3 01.PQ000.063047	63,00 - 47,50 - 6,30 chiudi	Ptfe/Bronze/Nbr	-
PQ1200630-T46N D.063x047,50x6,3 01.PQ000.06304763	63,00 - 47,50 - 6,30 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 63 N3-031 NBR+XR 226/036 D.063x052x4,2 01.NPQ10.063052	63,00 - 52,00 - 4,20 chiudi	Ptfe/Bronze/Nbr	2
NPQ1 64 N3-031 NBR+XR 226/036 D.064x053x4,2 01.NPQ10.064053	64,00 - 53,00 - 4,20 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 80 N4-031 FKM 2-333+XR041 D.080x064,50x6,3 01.NPQ1V.080064	64,50 - 80,00 - 6,30 chiudi	Ptfe/Bronzo/Viton	+ 2 dal 01/10/25
NPQ1 65 N3-031 NBR+XR 227/036 D.065x054x4,2 01.PQ014.065054	65,00 - 54,00 - 4,20 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 75 N3-032 NBR+XR 230/040 D.075x064x4,2 01.NPQ10.075064	75,00 - 64,00 - 4,20 chiudi	Ptfe/carbon/nbr	-
NPQ1 80 N4-031 NBR+XR 2-333/041 D.080x064,5x6,3 01.PQ020.080064	80,00 - 64,50 - 6,30 chiudi	Ptfe/Bronze/Nbr	4
NPQ1 82 N4-031 NBR+XR 2-334/041 D.082x066,5x6,3 01.NPQ10.082066	82,00 - 66,50 - 6,30 chiudi	Ptfe/Bronze/Nbr	-
XPQ1 N-031 NBR D.088,90x073,25x7,32 01.XPQ10.088073	88,90 - 73,25 - 7,32 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 90 N4-031 NBR+XR 336/042 D.090x074,5x6,3 01.NPQ10.090074	90,00 - 74,50 - 6,30 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 95 N4-031 NBR+XR 2-338/043 D.095x079,50x6,3 01.NPQ10.095079	95,00 - 79,50 - 6,30 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 100 N4-031 NBR 2-339+XR044 D.100x084,5x6,3 01.NPQ10.100084	100,00 - 84,50 - 6,30 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 105 N4-031 NBR 2-341+XR045 D.105x089,5x6,3 01.NPQ10.105089	105,00 - 89,50 - 6,30 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 110 N4-031 NBR 020343+XR045 D.110x094,5x6,3 01.NPQ10.110094	110,00 - 94,50 - 6,30 chiudi	Ptfe/Bronze/Nbr	-
PQ 1401100 D.110x094,5x6,3 01.PQ020.110094	110,00 - 94,50 - 6,30 chiudi		80
XPQ1 N-031 NBR D.114,30x098,65x7,32 01.XPQ10.114398	114,30 - 98,65 - 7,32 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 120 N5-031 NBR ORS126+XR157 D.120x099x8,1 01.PQ020.120099	120,00 - 99,00 - 8,10 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 120 N4-031 NBR 2-346+XR047 D.120x104,50x6,3 01.NPQ10.1201046	120,00 - 104,50 - 6,30 chiudi	Ptfe/Bronze/Nbr	1
NPQ1 145 N5-031 NBR 2-428+XR161 D.145x124x8,1 01.NPQ100.145124	145,00 - 124,00 - 8,10 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 150 N5-031 NBR 2-430+XR162 D.150x129,00x8,1 01.NPQ100.150129	150,00 - 129,00 - 8,10 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 160 N5-031 NBR+XR 432/163 D.160x139x8,1 01.NPQ10.160139	160,00 - 139,00 - 8,10 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 180 N6-031 NBR+XR 437/166 D.180x155,50x8,1 01.NPQ10.180155	180,00 - 155,50 - 8,10 chiudi	Ptfe/Bronze/Nbr
NPQ1 180 N5-031 NBR+XR 438/166 D.180x159x8,1 01.NPQ10.180159	180,00 - 159,00 - 8,10 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 200 N6-031 NBR 020440+XR170 D.200x175,50x8,1 01.NPQ100.200175	200,00 - 175,50 - 8,10 chiudi		-
NPQ1 200 N5-031 NBR 020441+XR170 D.200x179x8,1 01.NPQ100.200179	200,00 - 179,00 - 8,10 chiudi		-
NPQ1 230 N6-031 NBR+XR 445/174 D.230x205,50x8,1 01.NPQ10.2302058	230,00 - 205,50 - 8,10 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 230 N4-031 NBR+XR ... D.230x214,5x6,3 01.NPQ10.2302146	230,00 - 214,50 - 6,30 chiudi	Ptfe/Bronze/Nbr	-
NPQ2 250 Q3-277 NBR+XR 2-373/272 D.250x232x12,3 01.PQ030.2502321	232,00 - 250,00 - 12,30 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 250 N5-031 NBR 2-447+XR177 D.250x229x8,1 01.NPQ10.250229	250,00 - 229,00 - 8,10 chiudi	Ptfe/Bronze/Nbr	-
PQ 2402500-T46N D.250x229x 8,1 01.PQ020.250000	250,00 - 229,00 - 8,10 chiudi		-
NPQ2 300 Q3-277 NBR+XR 2-379/276 D.300x282x12,3 01.PQ030.300282	300,00 - 282,00 - 12,30 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 310 N7-031 NBR ORS175+XR278 D.310x282x9,5 01.NPQ10.310282	310,00 - 282,00 - 9,50 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 320 N7-031 NBR ORS1325+XR278 D.320x292x9,5 01.NPQ10.320292	320,00 - 292,00 - 9,50 chiudi	Ptfe/Bronze/Nbr	-
NPQ1 350 N7-031 NBR ORS1488+XR279 D.350x322x9,5 01.NPQ10.350322	350,00 - 322,00 - 9,50 chiudi	Ptfe/Bronze/Nbr	-
