In this category you find the items that help the operator, in a precise way, in determining the dimensions of the housing groove and of the seals themselves.
Applying proven methods to determine sizing will save you time, frustration and additional costs.
In o-rings the most important dimensions are the internal diameter and the cross section.
The items belonging this category are:
CALIPER DGT BORLETTI CDJ15 150X40. Clear reading display, 12 mm high numbers / Measuring range: 153 mm / Vernier resolution: 0.01 mm / External jaws: 40 mm, internal jaws: 16 mm / Overall dimensions: 235 mm
CALIPER MEASURING BOTTOM CAVITY 0-300mm. This gauge is designed to detect the internal diameter of the groove, bottom, depending on the depth of the seal holder you can use long or short arms.
1. Minimum groove depth 3/16 "(5mm) - maximum 3/8" (10mm).
2.Hole width: minimum 9/16 "(15mm) - maximum 12" (300mm)
definition: 1/128 "(0.05mm).
CALIPER MEASURE BOTTOM CAVITY 5/10/15/150. This gauge is designed to detect the internal diameter of the groove, bottom, depending on the depth of the seal holder you can use long or short arms.
1. Minimum groove depth 3/16 "(5mm) - maximum 3/8" (10mm).
2.Hole width: minimum 9/16 "(15mm) - maximum 6" (150mm)
definition: 1/128 "(0.05mm).
CALIPER-METER FOR TAPES. This article is used to make guide rings from tape, with high precision, follow the video to understand how it works.
CONE ALLM. FOR O-R METRIC D.005x050 mm
CONE ALLM. FOR O-R METRIC D.051x100 mm
CONE ALLM. FOR O-R METRIC D.101x150 mm
CONE ALLM. FOR O-R METRIC D.151x20 mm

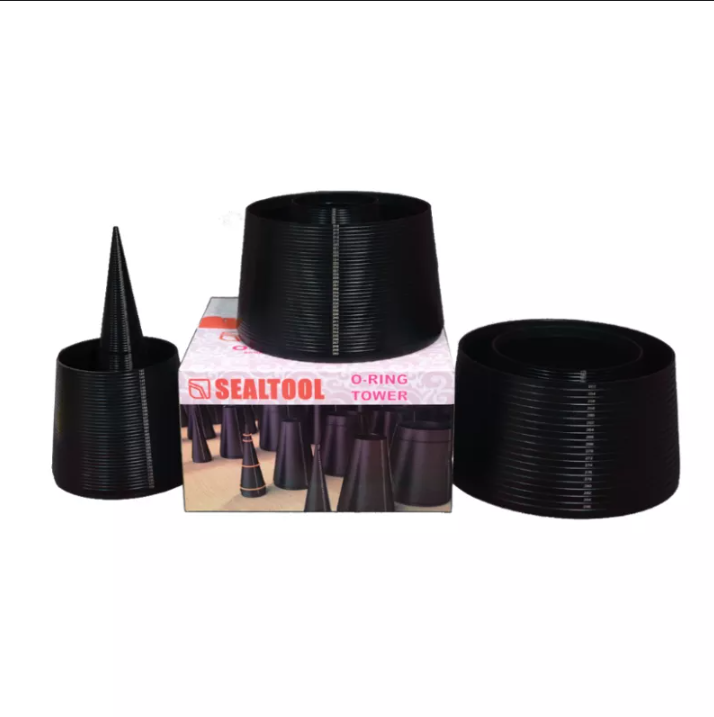

This series of metal cones allows the measurement of the internal diameters of the seals and o-rings in mm, the steps have an accuracy of 1 mm.
MEASURING CONE for O-R INCHES-INCH. This cone allows measurement of inch o-rings in 184 dimensions. strings 1.78 / 2.62 / 3.53 / 5.34 / 6.99
The dimensional references are present on the cone in relief.
MEASURER for O-R - 13 "mm 330. This sliding gauge can measure the inside diameter of an o-ring up to 13 inches. References are for 1.78 / 2.62 / 3.53 inch string o-rings. / 5.34 / 6.99.
MEASURING TAPE 100-700 MM / MEASURING TAPE 50-300 MM. These two tapes are used to measure and detect the internal and external diameters of the o-rings and gaskets in both inches and millimeters.
They differ from each other in the range of measurable dimensions.
