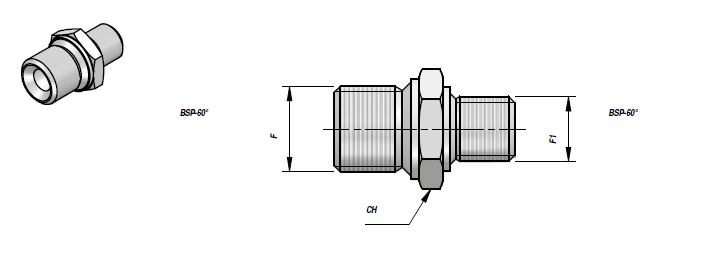

COMPLETE CATALOGUE BSP and metric adapters RV301 MALE REDUCING ADAPTER 14 Items

These are adapters with BSP 60° M+M reducer function.

Made of steel

It allows connections between the various elements that make up the hydraulic system.

Adapters are often the cheapest way to solve short-term problems.

the coupling is mechanical, made on a 60° cone seat

GENERAL FEATURES

• High pressures

• Absence of leaks (even in the presence of gas)

• Good resistance to high tightening

• Ease of assembly

• Possibility of repeated assembly and disassembly

APPLICATIONS

To facilitate the connection of rigid pipes or the connections of the flexible pipes.

RV301 MALE REDUCING ADAPTER YOU CAN REPLACE IT WITH:

Order by:

Avail.:

Brand:

Special Price:

Description	Dimensions(mm)	Material	Avail. (UN)
NIPLES RIDUZIONE 12 3/4"x1/2" 05.RV301.120800	0,00 - 0,00 - 0,00 chiudi	Steel	202
NIPLES RIDUZIONE 32 - 2" x 1"1/2 05.RV301.322400	0,00 - 0,00 - 0,00 chiudi	Steel	10
NIPLES RIDUZIONE 04 1/4"x1/8" 05.RV301.040300	19,00 - 0,00 - 0,00 chiudi	Steel	378
NIPLES RIDUZIONE 06 3/8"x1/4" 05.RV301.060400	22,00 - 0,00 - 0,00 chiudi	Aluminium	51
NIPLES RIDUZIONE 06 3/8"x1/8" 05.RV301.060300	22,00 - 0,00 - 0,00 chiudi	Steel	50
NIPLES RIDUZIONE 08 1/2"x1/4" 05.RV301.080400	27,00 - 0,00 - 0,00 chiudi	Steel	75
NIPLES RIDUZIONE 08 1/2"x3/8" 05.RV301.080600	27,00 - 0,00 - 0,00 chiudi	Steel	5
NIPLES RIDUZIONE 10 5/8"x1/2" 05.RV301.100800	30,00 - 0,00 - 0,00 chiudi	Steel	54
NIPLES RIDUZIONE 12 3/4 x1/4" 05.RV301.120400	32,00 - 0,00 - 0,00 chiudi	Steel	42
NIPLES RIDUZIONE 12 3/4"x3/8" 05.RV301.120600	32,00 - 0,00 - 0,00 chiudi	Steel	94
NIPLES RIDUZIONE 12 3/4"x5/8" 05.RV301.121000	32,00 - 0,00 - 0,00 chiudi	Steel	ask for times
NIPLES RIDUZIONE 16 1" x3/8" 05.RV301.160600	38,00 - 0,00 - 0,00 chiudi	Steel	7
NIPLES RIDUZIONE 16 1" x1/2" 05.RV301.160800	41,00 - 0,00 - 0,00 chiudi	Steel	9
NIPLES RIDUZIONE 16 1" x3/4" 05.RV301.161200	41,00 - 0,00 - 0,00 chiudi	Steel	117

Order by:

Avail.:

Brand:

Special Price:

Did you not find what you were looking for?
Please send an e-mail to netseals@netseals.it or fill in the appropriate form
