COMPLETE CATALOGUE Components for control units PC-2 13 Items

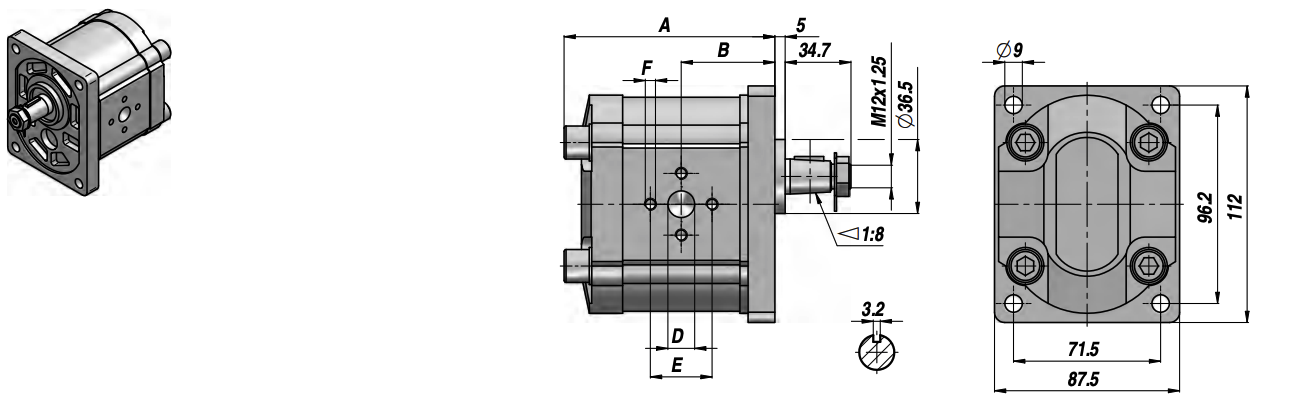

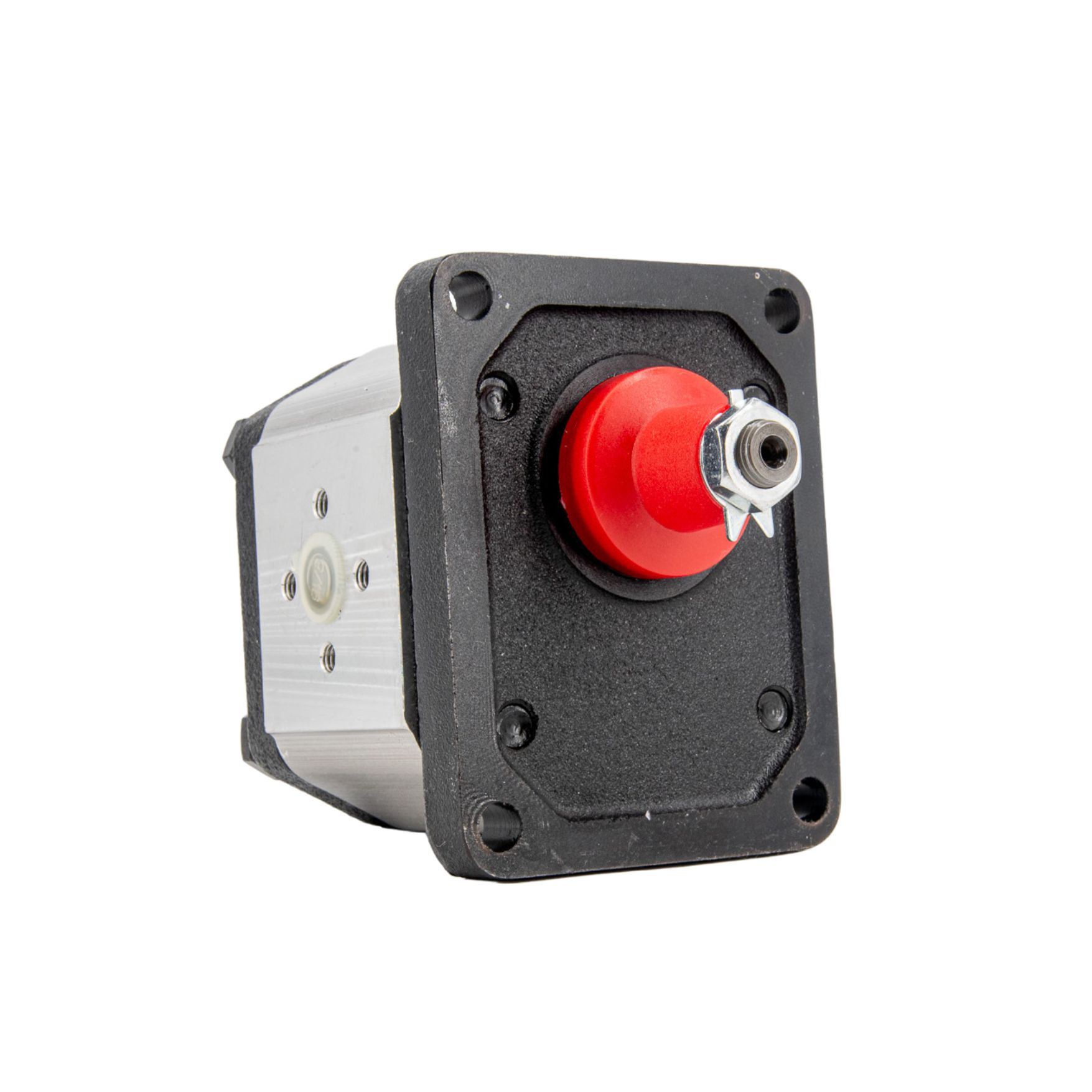

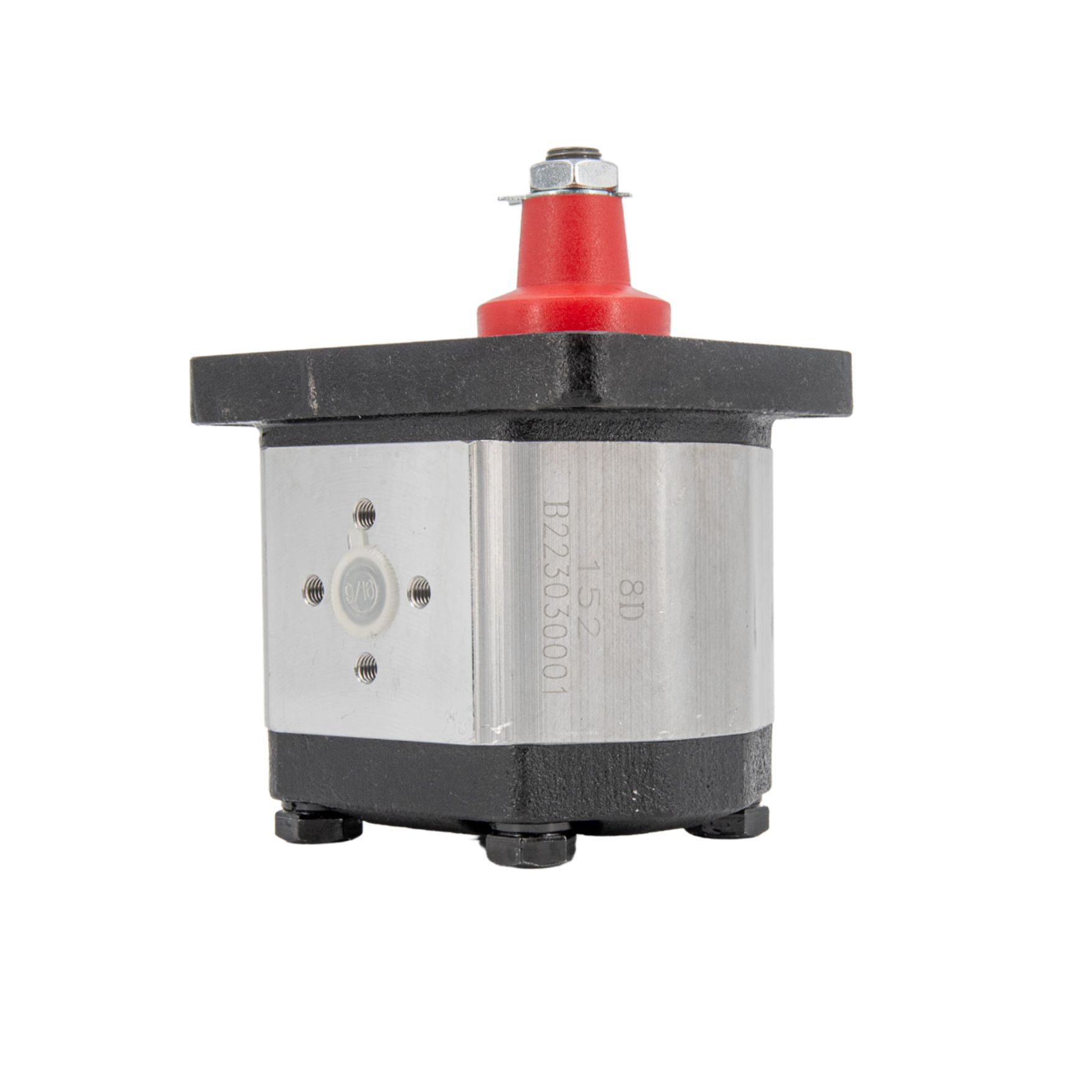

The “PC-1 /2 /3” series gear pumps include the following units, displacements and pressures: GR.1 from 1.1 to 8.00 cm3/rev. – Max. Pressure 250 bars, GR.2 from 6.00 to 30.00 cm3/rev. – Max. Pressure 250 bars, GR.3 from 22.00 to 70.00 cm3/rev. – Max. Pressure 250 bars. The gr.2 and gr.3 pumps offer the possibility of inverting rotation by simply turning the front base. They are available both with machining of the body in order to put elbow connectors and with threaded housing.
