COMPLETE CATALOGUE Cylinder accessories CDIS 46 Items

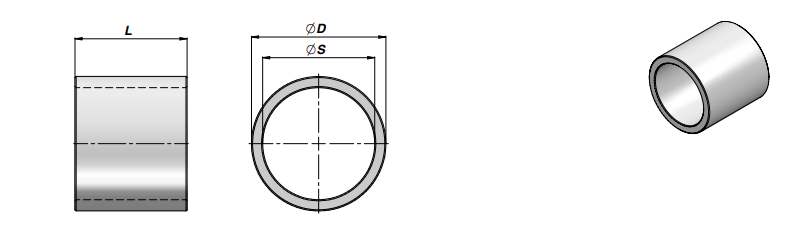

DRAWINGS

 The spacer of the series CDIS is a component suitable for the production of single and double acting cylinders. Made of St52.3, it allows a longer pin to pin distance limiting the stroke of the cylinder at the desidered length. This item is advisable for all the sectors.



CDIS YOU CAN REPLACE IT WITH:
  • CDIS
Order by:
Avail.:
Brand:
Special Price:
Description Brand Dimensions(mm) Material Avail. (UN)
SPACER LEV. Ø120-Ø145 L. 100 mm
05.CDIS0.120145100
    120,00 - 145,00 - 100,00 Steel 1
SPACER LEV. Ø120-Ø145 L. 50 mm
05.CDIS0.120145050
    120,00 - 145,00 - 50,00 Steel 1
SPACER LEV. Ø140-Ø170 L. 100 mm
05.CDIS0.140170100
    140,00 - 170,00 - 100,00 Steel 1
SPACER LEV. Ø140-Ø170 L. 50 mm
05.CDIS0.140170050
    140,00 - 170,00 - 50,00 Steel 1
SPACER LEV. Ø150-Ø180 L. 100 mm
05.CDIS0.150180100
    150,00 - 180,00 - 100,00 Steel 1
SPACER LEV. Ø150-Ø180 L. 50 mm
05.CDIS0.150180050
    150,00 - 180,00 - 50,00 Steel 1
SPACER LEV. Ø180-Ø210 L. 50 mm
05.CDIS0.180210050
    180,00 - 210,00 - 50,00 Steel 1
SPACER LEV. Ø180-Ø210 L.100 mm
05.CDIS0.180210100
    180,00 - 210,00 - 100,00 Steel 1
SPACER LUC. Ø50-Ø60 L. 50 mm (B25)
05.CDIS0.050060050
     50,00 - 60,00 - 50,00 Steel 2
SPACER LUC. Ø55-Ø65 L. 100 mm (B15)
05.CDIS0.055065100
     55,00 - 65,00 - 100,00 Steel 3
SPACER LUC. Ø60-Ø75 L. 100 mm (B10)
05.CDIS0.060075100
     60,00 - 75,00 - 100,00 Steel 3
SPACER LUC. Ø60-Ø75 L. 50 mm (B20)
05.CDIS0.060075050
     60,00 - 75,00 - 50,00 Steel 3
SPACER LUC. Ø70-Ø85 L. 50 mm (B10)
05.CDIS0.070085050
     70,00 - 85,00 - 50,00 Steel 3
SPACER FE 510-H9 028-038 L-100mm (B50)
05.CDIS0.028038100
     28,00 - 38,00 - 100,00 Steel 4
SPACER FE 510-H9 Ø28-Ø38 L. 50mm (B50)
05.CDIS0.028038050
     28,00 - 38,00 - 50,00 Steel 4
SPACER FE 510-H9 Ø36-Ø42 L. 100 mm (B25)
05.CDIS0.036042100
     36,00 - 42,00 - 100,00 Steel 4
SPACER FE 510-H9 Ø36-Ø42 L-050 mm (B50)
05.CDIS0.036042050
     36,00 - 42,00 - 50,00 Steel 4
SPACER FE 510-H9 Ø16- Ø22 L. 100 mm
05.CDIS0.016022100
     16,00 - 22,00 - 100,00 Steel 4
SPACER FE 510-H9 Ø16-Ø22 L. 50 mm (B100)
05.CDIS0.016022050
     16,00 - 22,00 - 50,00 Steel 4
SPACER LEV. Ø100-Ø120 L. 50 mm
05.CDIS0.100120050
    100,00 - 120,00 - 50,00 Steel 4
SPACER LUC. Ø20-Ø30 L. 50 mm
05.CDIS0.020030050
     20,00 - 30,00 - 50,00 Steel 4
SPACER LUC. Ø22- Ø32 L. 050 mm (B100)
05.CDIS0.022032050
     22,00 - 32,00 - 50,00 Steel 4
SPACER LUC. Ø22-Ø32 L. 100 mm (B50)
05.CDIS0.022032100
     22,00 - 32,00 - 100,00 Steel 4
SPACER LUC. Ø25-Ø35 L. 100 mm (B50)
05.CDIS0.025035100
     25,00 - 35,00 - 100,00 Steel 4
SPACER LUC. Ø25-Ø35 L. 50 mm (B50)
05.CDIS0.025035050
     25,00 - 35,00 - 50,00 Steel 4
SPACER LUC. Ø30-Ø40 L. 100 mm (B50)
05.CDIS0.030040100
     30,00 - 40,00 - 100,00 Steel 4
SPACER LUC. Ø30-Ø40 L. 50 mm (B50)
05.CDIS0.030040050
     30,00 - 40,00 - 50,00 Steel 4
SPACER LUC. Ø32-Ø42 L. 100 mm (B50)
05.CDIS0.032042100
     32,00 - 42,00 - 100,00 Steel 4
SPACER LUC. Ø32-Ø42 L. 50 mm (B50)
05.CDIS0.032042050
     32,00 - 42,00 - 50,00 Steel 4
SPACER LUC. Ø35-Ø45 L. 100 mm (B25)
05.CDIS0.035045100
     35,00 - 45,00 - 100,00 Steel 4
SPACER LUC. Ø35-Ø45 L. 50 mm (B50)
05.CDIS0.035045050
     35,00 - 45,00 - 50,00 Steel 4
SPACER LUC. Ø40-Ø50 L. 100 mm (B25)
05.CDIS0.040050100
     40,00 - 50,00 - 100,00 Steel 4
SPACER LUC. Ø40-Ø50 L. 50 mm (B50)
05.CDIS0.040050050
     40,00 - 50,00 - 50,00 Steel 4
SPACER LUC. Ø45-Ø55 L. 100 mm (B25)
05.CDIS0.045055100
     45,00 - 55,00 - 100,00 Steel 4
SPACER LUC. Ø45-Ø55 L. 50 mm (B25)
05.CDIS0.045055050
     45,00 - 55,00 - 50,00 Steel 4
SPACER LUC. Ø50-Ø60 L. 100 mm (B20)
05.CDIS0.050060100
     50,00 - 60,00 - 100,00 Steel 4
SPACER LUC. Ø55-Ø65 L. 50 mm (B25)
05.CDIS0.055065050
     55,00 - 65,00 - 50,00 Steel 4
SPACER LUC. Ø63-Ø75 L. 100 mm (B10)
05.CDIS0.063075100
     63,00 - 75,00 - 100,00 Steel 4
SPACER LUC. Ø63-Ø75 L. 50 mm (B20)
05.CDIS0.063075050
     63,00 - 75,00 - 50,00 Steel 4
SPACER LUC. Ø70-Ø85 L. 100 mm (B05)
05.CDIS0.070085100
     70,00 - 85,00 - 100,00 Steel 4
SPACER LUC. Ø80-Ø95 L. 100 mm (B05)
05.CDIS0.080095100
     80,00 - 95,00 - 100,00 Steel 4
SPACER LUC. Ø80-Ø95 L. 50 mm (B10)
05.CDIS0.080095050
     80,00 - 95,00 - 50,00 Steel 4
SPACER LUC. Ø90-Ø105 L. 100 mm (B05)
05.CDIS0.090105100
     90,00 - 105,00 - 100,00 Steel 4
SPACER LUC. Ø90-Ø105 L. 50 mm(B10)
05.CDIS0.090105050
     90,00 - 405,00 - 50,00 Steel 4
SPACER LEV. Ø100-Ø120 L. 100 mm
05.CDIS0.100120100
    100,00 - 120,00 - 100,00 Steel 6
SPACER LUC. Ø20-Ø30 L. 100 mm (B50)
05.CDIS0.020030100
     20,00 - 30,00 - 100,00 Steel 6
