COMPLETE CATALOGUE Ends FLANGE CFL 23 Items

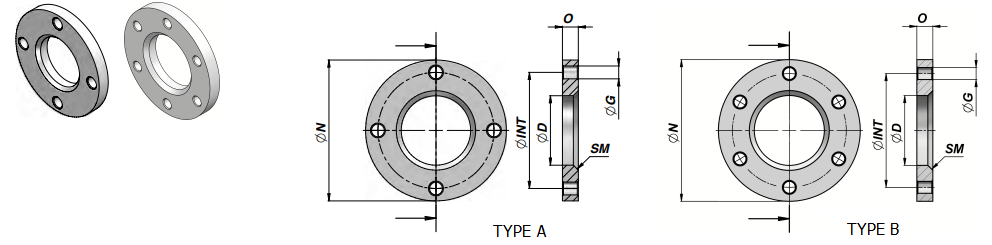

DRAWINGS

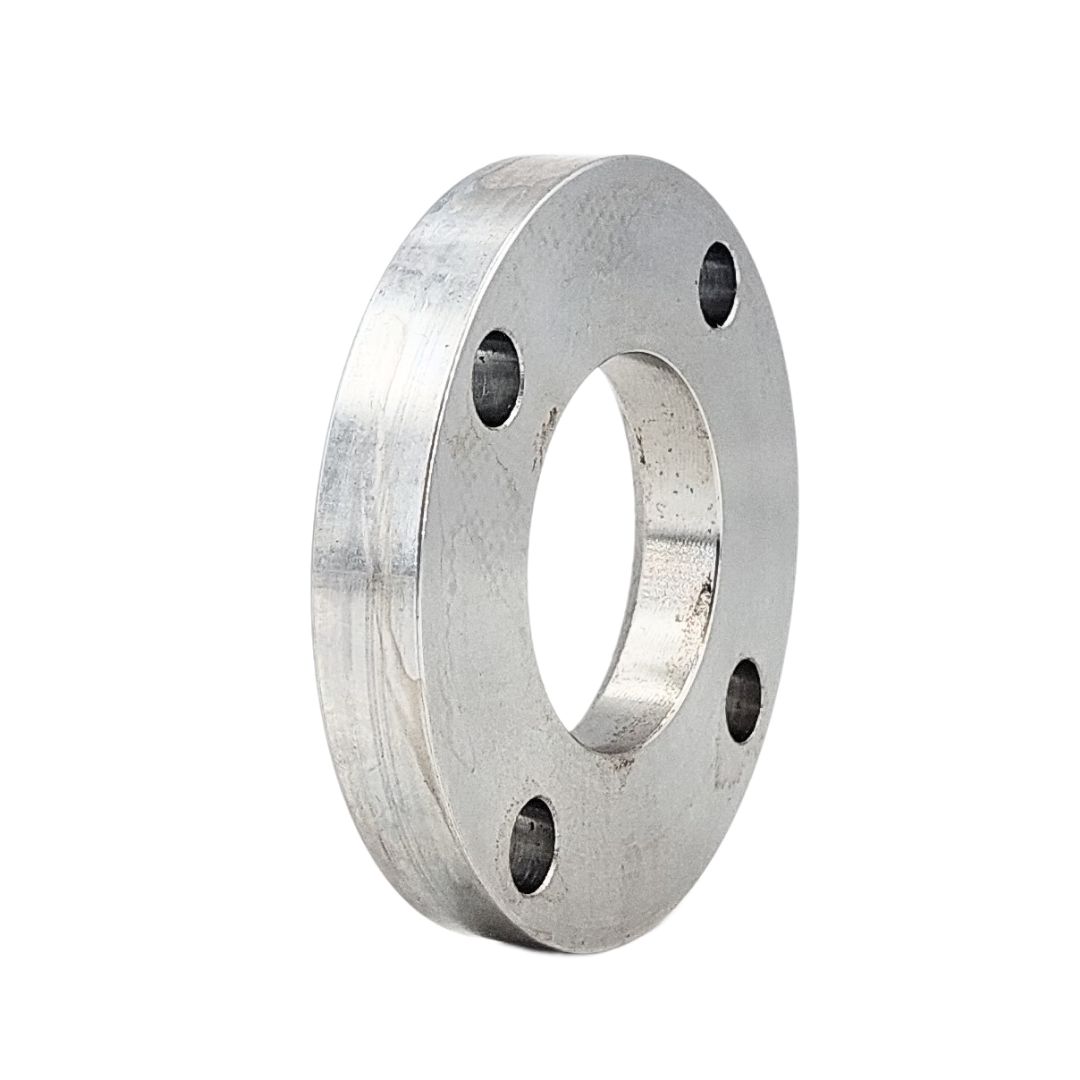

 The weldable flange of the series CFL is an attachment suitable for the production of single and double acting cylinders. Made of Fe510C and welded on the tube of the cylinder, it allows an easy and strong fastening of the cylinder. This flange is used in our standard cylinders HMF and is suitable for all the sectors.



FLANGE CFL YOU CAN REPLACE IT WITH:
  • FLANGE CFL
Order by:
Avail.:
Brand:
Special Price:
Description Brand Dimensions(mm) Material Avail. (UN)
FLANGE Ø158xØ280x33
05.CFL00.0160280
   158,00 - 280,00 - 33,00 Steel 1
FLANGE Ø80xØ162x16,5
05.CFL00.0080162
    80,00 - 162,00 - 16,50 Steel 10
FLANGE Ø42xØ89x12
05.CFL00.0042089
    42,00 - 89,00 - 12,00 Steel 12
FLANGE Ø100xØ188x18,5
05.CFL00.0100188
   100,00 - 188,00 - 18,50 Steel 13
FLANGE Ø40xØ80x12
05.CFL00.0040080
    40,00 - 80,00 - 12,00 Steel 14
FLANGE Ø60xØ128x14,5
05.CFL00.0060128
    60,00 - 128,00 - 14,50 Steel 14
FLANGE Ø50xØ109x12,5
05.CFL00.0050109
    50,00 - 109,00 - 12,50 Steel 15
FLANGE Ø73xØ145x16,5
05.CFL00.0073145
    73,00 - 145,00 - 16,50 Steel 2
FLANGE Ø115xØ194x24,5
05.CFL00.0115194
   115,00 - 194,00 - 24,50 Steel 2
FLANGE Ø123xØ228x28
05.CFL00.0125228
   123,00 - 228,00 - 28,00 Steel 3
FLANGE Ø138xØ240x28
05.CFL00.0140240
   138,00 - 240,00 - 28,00 Steel 3
FLANGE Ø95xØ181x18,5
05.CFL00.0095181
    95,00 - 181,00 - 18,50 Steel 3
FLANGE Ø45xØ95x12
05.CFL00.0045095
    45,00 - 95,00 - 12,00 Steel 4
FLANGE Ø105xØ188x24,5
05.CFL00.0105188
   105,00 - 188,00 - 24,50 Steel 4
FLANGE Ø35xØ72x10
05.CFL00.0035072
    35,00 - 72,00 - 10,00 Steel 5
FLANGE Ø55xØ123x14,5
05.CFL00.0055123
    55,00 - 123,00 - 14,50 Steel 5
FLANGE Ø65xØ135x15,5
05.CFL00.0065135
    65,00 - 135,00 - 15,50 Steel 5
FLANGE Ø75xØ152x16,5
05.CFL00.0075152
    75,00 - 152,00 - 16,50 Steel 5
FLANGE Ø90xØ175X18,50
05.CFL00.0090175
    90,00 - 175,00 - 18,50 Steel 5
FLANGE Ø70xØ142x16,5
05.CFL00.0070142
    70,00 - 142,00 - 16,50 Steel 7
FLANGE Ø143xØ250x28
05.CFL00.0145250
   143,00 - 250,00 - 28,00 Steel ask for times
FLANGE Ø168xØ300x38
05.CFL00.0170300
   168,00 - 300,00 - 38,00 Steel -
FLANGE Ø178xØ325x38
05.CFL00.0180325
   178,00 - 325,00 - 38,00 Steel -
