COMPLETE CATALOGUE Head Bushes PLUNGER HEAD BUSH CGHFRT 12 Items

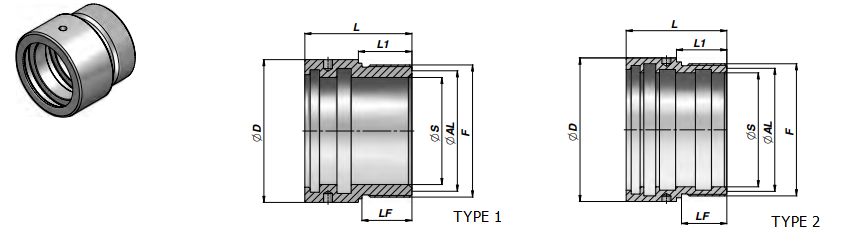

DRAWINGS

The headbush of the series CGHFRT is a semi-finished product suitable to manufacture plunger cylinders. Made of steel 9SMn28 up to a rod diameter of 60 mm and in steel UNI C40 for bigger diameters, all of them are NI-TEMPER treated. It is a basic component for our standard cylinders HFRT. It is a very versatile item, particularly used in the mobile, in the agricultural and in the industrial sectors.

PLUNGER HEAD BUSH CGHFRT YOU CAN REPLACE IT WITH:

Order by:

Avail.:

Brand:

Special Price:

Description	Dimensions(mm)	Material	Avail. (UN)
GUIDA TUFF. PER HFRT D. Ø20 TRATT.TENIFER 05.CGHFRT.002000 Complete it with (not included): SET x HFRT D.S. 020 - 01.NKGH0.0200001	30,00 - 20,00 - 42,00 chiudi	Steel	46
GUIDA TUFF. PER HFRT D. Ø25 TRATT.TENIFER 05.CGHFRT.002500 Complete it with (not included): SET x HFRT D.S. 025 - 01.NKGH0.025000	30,00 - 25,00 - 42,00 chiudi	Steel	24
GUIDA TUFF. PER HFRT D. Ø30 TRATT.TENIFER 05.CGHFRT.003000 Complete it with (not included): SET x HFRT D.S. 030 - 01.NKGH0.030000	40,00 - 30,00 - 0,00 chiudi	Steel	30
GUIDA TUFF. PER HFRT D. Ø35 TRATT.TENIFER 05.CGHFRT.003500 Complete it with (not included): SET x HFRT D.S. 035 - 01.NKGH0.035000	40,00 - 35,00 - 46,00 chiudi	Steel	35
GUIDA TUFF. PER HFRT D. Ø40 TRATT.TENIFER 05.CGHFRT.004000 Complete it with (not included): SET x HFRT D.S. 040 - 01.NKGH0.040000	50,00 - 40,00 - 59,00 chiudi	Steel	15
GUIDA TUFF. PER HFRT D. Ø45 TRATT.TENIFER 05.CGHFRT.004500 Complete it with (not included): SET x HFRT D.S. 045 - 01.NKGH0.045000	50,00 - 45,00 - 59,00 chiudi	Steel	47
GUIDA TUFF. PER HFRT D. Ø50 TRATT.TENIFER 05.CGHFRT.005000 Complete it with (not included): SET x HFRT D.S. 050 - 01.NKGH0.050000	60,00 - 50,00 - 60,00 chiudi	Steel	18
GUIDA TUFF. PER HFRT D. Ø60 TRATT.TENIFER 05.CGHFRT.006000 Complete it with (not included): SET x HFRT D.S. 060 - 01.NKGH0.060000	70,00 - 60,00 - 60,00 chiudi	Steel	24
GUIDA TUFF. PER HFRT D. Ø70 05.CGHFRT.007000 Complete it with (not included): SET x HFRT D.S. 070 - 01.NKGH0.070000	80,00 - 70,00 - 70,00 chiudi	Steel	11
GUIDA TUFF. PER HFRT D. Ø80 05.CGHFRT.008000 Complete it with (not included): SET x HFRT D.S. 080 - 01.NKGH0.080000	90,00 - 80,00 - 80,00 chiudi	Steel	43
GUIDA TUFF. PER HFRT D. Ø90 05.CGHFRT.009000 Complete it with (not included): SET x HFRT D.S. 090 - 01.NKGH0.090000	100,00 - 90,00 - 80,00 chiudi	Steel	5
GUIDA TUFF. PER HFRT D. Ø100 05.CGHFRT.010000 Complete it with (not included): SET x HFRT D.S. 100 - 01.NKGH0.100000	110,00 - 100,00 - 100,00 chiudi	Steel	19
