COMPLETE CATALOGUE Head Bushes CGT 11 Items

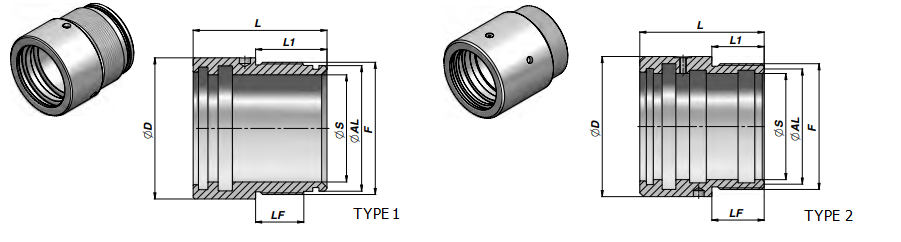

DRAWINGS

The headbush of the series CGT is a semi-finished product suitable to manufacture plunger cylinders. Made of hydraulic cast iron G25 up to rod diameter 60 mm and of steel for bigger sizes, it is a basic component for the production of our standard cylinder HT0. It is a very versatile item, particularly used in the mobile, in the agricultural and in the industrial sectors.

CGT YOU CAN REPLACE IT WITH:

Order by:

Avail.:

Brand:

Special Price:

Description	Dimensions(mm)	Material	Avail. (UN)
PLUNGER HEAD BUSH ST. Ø50 05.CGT00.00500600 Complete it with (not included): SET GUAR TUFF. S.050 KGNBTT050060 - 01.NKGT0.050060	50,00 - 60,00 - 75,00 chiudi	Hydraulic Castiron	1
PLUNGER HEAD BUSH ST. Ø45 05.CGT00.00450550 Complete it with (not included): SET GUAR TUFF. S.045 - 01.NKGT0.045055	45,00 - 55,00 - 70,00 chiudi	Hydraulic Castiron	107
PLUNGER HEAD BUSH ST. Ø20 05.CGT00.00200300 Complete it with (not included): SET GUAR TUFF. S.020 - 01.NKGT0.020030	20,00 - 30,00 - 57,00 chiudi	Hydraulic Castiron	26
PLUNGER HEAD BUSH ST. Ø40 05.CGT00.00400500 Complete it with (not included): SET GUAR TUFF. S.040 EX204G (KGNBTT040050) - 01.NKGT0.040050 SET GUAR TUFF. S.040 EX204G (con GHW, no GHK) - 01.NKGT1.040050	40,00 - 50,00 - 70,00 chiudi	Hydraulic Castiron	26
PLUNGER HEAD BUSH ST. Ø100 05.CGT00.01001240 Complete it with (not included): SET GUAR TUFF. S.100 - 01.NKGT0.100000	100,00 - 120,00 - 157,00 chiudi	Steel	4
PLUNGER HEAD BUSH ST. Ø80 05.CGT00.00800960 Complete it with (not included): SET GUAR TUFF. S.080 - 01.NKGT0.080000	80,00 - 90,00 - 0,00 chiudi	Steel	4
PLUNGER HEAD BUSH ST. Ø25 05.CGT00.00250350 Complete it with (not included): SET GUAR TUFF. S.025 EX201G - 01.NKGT0.025035	25,00 - 35,00 - 0,00 chiudi	Hydraulic Castiron	77
PLUNGER HEAD BUSH ST. Ø35 05.CGT00.00350450 Complete it with (not included): SET GUAR TUFF. S.035 EX203G - 01.NKGT0.035045	35,00 - 45,00 - 65,00 chiudi	Hydraulic Castiron	77
PLUNGER HEAD BUSH ST. Ø70 05.CGT00.00700900 Complete it with (not included): SET GUAR TUFF. S.070 - 01.NKGT0.070000	70,00 - 85,00 - 90,00 chiudi	Steel	8
PLUNGER HEAD BUSH ST. Ø30 05.CGT00.00300400 Complete it with (not included): SET GUAR TUFF. S.030 EX202G - 01.NKGT0.030040	30,00 - 40,00 - 65,00 chiudi	Hydraulic Castiron	ask for times
PLUNGER HEAD BUSH ST. Ø60 05.CGT00.00600700 Complete it with (not included): SET GUAR TUFF. S.060 EX206G - 01.NKGT0.060070	60,00 - 70,00 - 75,00 chiudi	Hydraulic Castiron	ask for times
