COMPLETE CATALOGUE Hydraulic directional control valves DDF3 AP-A 4 Items

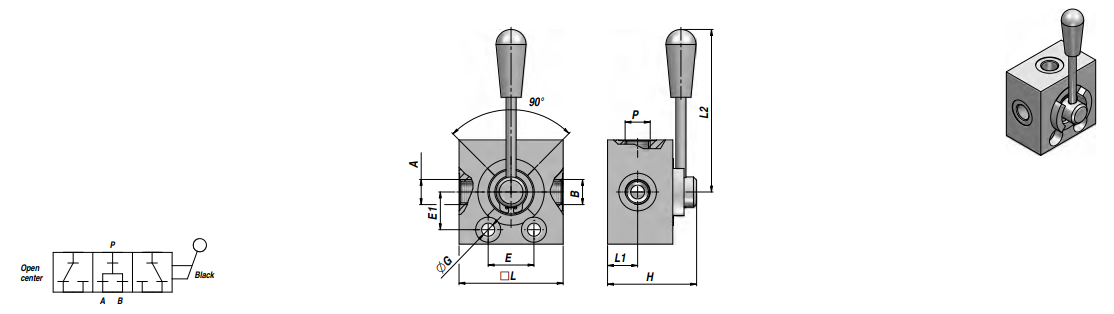

DRAWINGS




The DDF3-AP..A-series 3-way flow deflect valves with open centre are used to connect or take out inlet flow towards two ports. This particular configuration can also be used for operating a single acting actuator. Open centre scheme. Suitable for high pressures.

DDF3 AP-A YOU CAN REPLACE IT WITH:
  • DDF3 AP-A
Order by:
Avail.:
Brand:
Special Price:
Description Brand Dimensions(mm) Material Avail. (UN)
DDF3 AP 040A 3/4" 3-WAY FLOW DEFLECT VALVE MT
05.V71367.A01200
     87,00 - 30,50 - 32,00 Steel 5
DDF3 AP 030A 1/2" 3-WAY FLOW DEFLECT VALVE MT
05.V71367.A00800
     83,00 - 71,00 - 36,50 Steel 7
DDF3 AP 020A 3/8" 3-WAY FLOW DEFLECT VALVE MT
05.V71367.A00600
     68,00 - 62,00 - 30,00 Steel -
DDF3 AP 050A 1" 3-WAY FLOW DEFLECT VALVE MT
05.V71367.A01600
    106,00 - 89,00 - 60,00 Steel -
