COMPLETE CATALOGUE Hydraulic directional control valves DDF3-C 4 Items

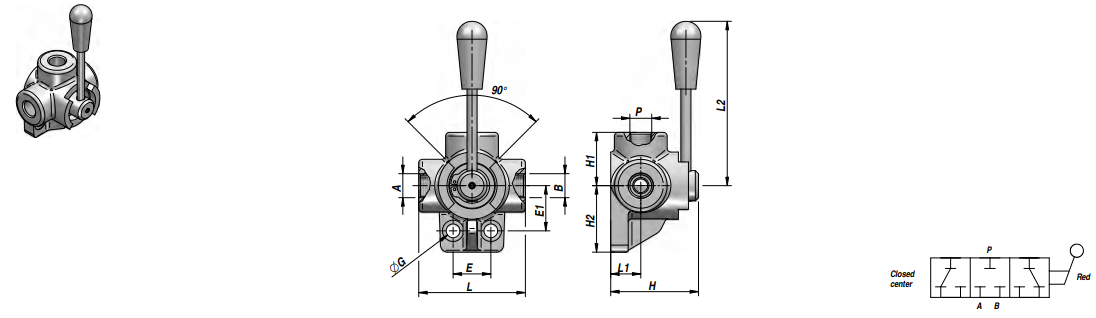

DRAWINGS

The BDDF3-C / DDF3-C-series 3-way flow deflect valves with closed centre are used to connect or take out inlet flow towards two ports. This particular configuration can also be used for operating a single acting actuator. Closed centre scheme.

DDF3-C YOU CAN REPLACE IT WITH:

Download PDF

Order by:

Avail.:

Brand:

Special Price:

Description	Dimensions(mm)	Material	Avail. (UN)
DDF3-C 3/8" 3-WAY FLOW DEFLECT VALVE 05.V70367.C00600	73,00 - 62,00 - 24,00 chiudi	Cast iron	1
DDF3-C 1" 3-WAY FLOW DEFLECT VALVE OM(V0910CC) 05.V70367.C11600	96,00 - 90,00 - 32,00 chiudi	Cast iron	3
DDF3-C 1/2" 3-WAY FLOW DEFLECT VALVE OM(V0890CC) 05.V70367.C00800	85,00 - 70,00 - 32,00 chiudi	Cast iron	-
DDF3-C 3/4" 3-WAY FLOW DEFLECT VALVE OM(V0900CC) 05.V70367.C01200	90,00 - 80,00 - 32,00 chiudi	Cast iron	-
