COMPLETE CATALOGUE Hydraulic directional control valves RSD 2 14 Items

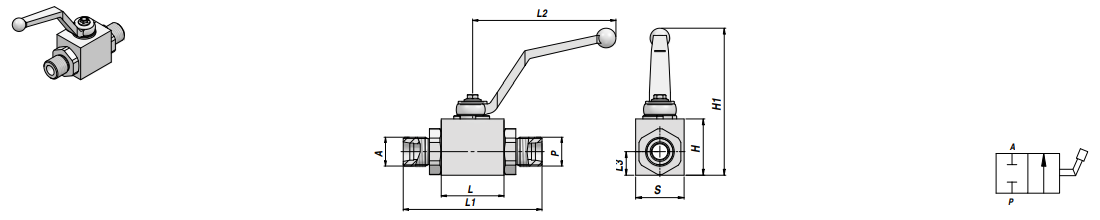

DRAWINGS

 The RSD 2 series 2-way ball valve is used in line as an oil flow opening/closing tap. DIN 2353 fittings (NUTS and CUTTING RINGS excluded)



RSD 2 YOU CAN REPLACE IT WITH:
  • RSD 2
Order by:
Avail.:
Brand:
Special Price:
Description Brand Dimensions(mm) Material Avail. (UN)
2-WAY BALL VALVE RSD2 08L DN06 M14x1,5-1111AB
05.DRSD0.208L00
     42,40 - 91,50 - 30,00 Steel 2
2-WAY BALL VALVE RSD2 16S DN13 M24x1,5-1111AB
05.DRSD0.216S00
     48,40 - 99,50 - 37,00 Steel 3
2-WAY BALL VALVE RSD2 30S DN25 M42x2-1111AB
05.DRSD0.230S00
     66,50 - 116,50 - 55,00 Steel 3
2-WAY BALL VALVE RSD2 20S DN13 M30x2-1111AB
05.DRSD0.220S00
     48,40 - 99,50 - 37,00 Steel 4
2-WAY BALL VALVE RSD2 25S DN20 M36x2-1111AB
05.DRSD0.225S00
     0,00 - 0,00 - 0,00 Steel 8
2-WAY BALL VALVE RSD2 10L DN06 M16x1,5-1111AB
05.DRSD0.210L00
     44,40 - 96,50 - 35,00 Steel -
2-WAY BALL VALVE RSD2 10S DN06 M18x1,5-1111AB
05.DRSD0.210S00
     42,40 - 91,50 - 30,00 Steel -
2-WAY BALL VALVE RSD2 12L DN10 M18x1,5-1111AB
05.DRSD0.212L00
     79,50 - 96,50 - 35,00 Steel -
2-WAY BALL VALVE RSD2 12S DN10 M20x1,5-1111AB
05.DRSD0.212S00
     44,40 - 96,50 - 35,00 Steel -
2-WAY BALL VALVE RSD2 14S DN10 M22x1,5-1111AB
05.DRSD0.214S00
     44,40 - 96,50 - 35,00 Steel -
2-WAY BALL VALVE RSD2 15L DN13 M22x1,5-1111AB
05.DRSD0.215L00
     48,40 - 99,50 - 37,00 Steel -
2-WAY BALL VALVE RSD2 18L DN13 M26x1,5-1111AB
05.DRSD0.218L00
     48,40 - 99,50 - 37,00 Steel -
2-WAY BALL VALVE RSD2 22L DN20 M30x2-1111AB
05.DRSD0.222L00
     62,50 - 106,50 - 49,00 Steel -
2-WAY BALL VALVE RSD2 28L DN25 M36x2-1111AB
05.DRSD0.228L00
     66,50 - 116,50 - 55,00 Steel -
