COMPLETE CATALOGUE MOUNTING ACCESSORIES Manual press OR/GER IM12 7 Items

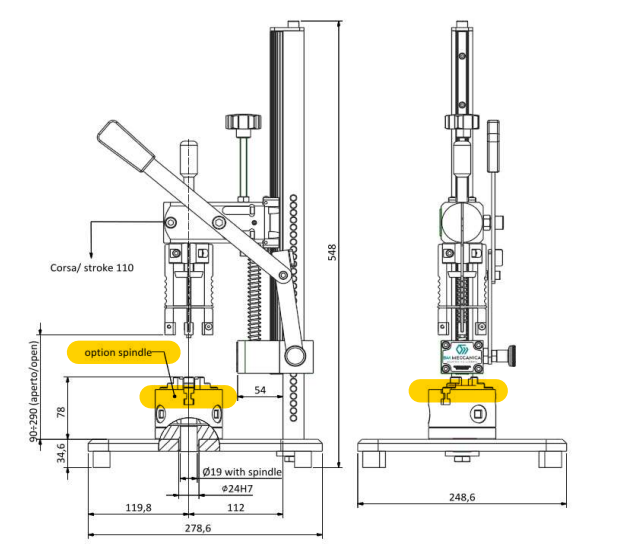

DRAWINGS

Manual press for inserting seals, O-rings of Øint. 6 to 37 mm.

Manual use (from small quantities for occasional to continuous use). Semi-automatic use for industrial work.

Standard equipment: 5 O-rings to close arms; seal removal tool; USB stick with user and maintenance manual.

Spindle NOT included

—
Data sheet for Manual O Ring / IM12 seals inserter

Maximum seal internal diameter - Ø34
Minimum seal internal diameter - Ø6
Weight without spindle - 14 kg
Stroke - 110mm
Maximum spindle finer opening diameter (optional) - Ø34
Average cycle time - 4-6 sec

Manual press OR/GER IM12 YOU CAN REPLACE IT WITH:

Order by:

Avail.:

Brand:

Special Price:

Description	Dimensions(mm)	Material	Avail. (UN)
Inseritore pneumatico O-Ring / guarnizioni IP21 05.PRESS.IP2100	0,00 - 0,00 - 0,00 chiudi	Steel	-
Inseritore pneumatico O-Ring 4 teste IP50 05.PRESS.IP50000	0,00 - 0,00 - 0,00 chiudi	Steel	-
OR-GER SEALS INTRUDER IM12 05.PRESS.IM12000	248,60 - 278,60 - 548,00 chiudi	Steel	-
PRESSA GUARNIZIONI OR-GER con revolver a 4 posizioni IM12R 05.PRESS.IM12R00	0,00 - 0,00 - 0,00 chiudi	Steel	-
Pressa a testa tonda 3PH 175 ton.electr. n.10 c/ accessori Ø10/14/16/19/L40-Ø22/26/L50-Ø28/L60-Ø30/34/40/L70-Ø46/52/L75 05.PRESS.H32E175	0,00 - 0,00 - 0,00 chiudi	Steel	-
Pressa a testa tonda modular 90 ton aria pompa c/accessori Ø10/14/16/19/L40-Ø22/26/28/L50 05.PRESS.H19MM	0,00 - 0,00 - 0,00 chiudi	Steel	-
Pressa testa tonda modular 100 ton aria c/ accessori Ø10/14/16/19/L40-Ø22/28/L50-Ø34/40/L60 05.PRESS.H25MINI	0,00 - 0,00 - 0,00 chiudi	Steel	-
