COMPLETE CATALOGUE Pistons CTTB 14 Items

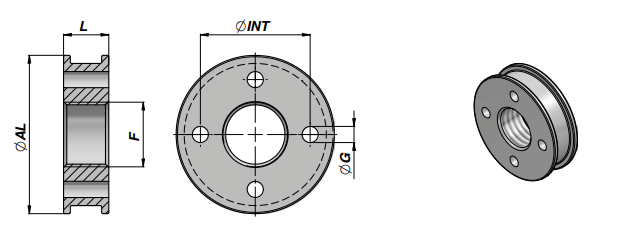

DRAWINGS

 The piston of the series CTB is a semi-finished product suitable to manufcture single and double acting hydraulic cylinders. Made of steel 9SMn28, in comparison with the type CT has a very compact structure so that to solve – when necessary – problems of length of the cylinder. It is a very versatile item, particularly used in the mobile, in the agricultural and in the industrial sectors.

CTTB YOU CAN REPLACE IT WITH:
  • CTTB
Order by:
Avail.:
Brand:
Special Price:
Description Brand Dimensions(mm) Material Avail. (UN)
PISTONE x TUFF AL.070 FIL.24x2 L-20
05.CTTB0.0702420
Complete it with (not included):
    50,00 - 70,00 - 20,00 Steel 18
PISTONE x TUFF AL.050 FIL.20x1.5 L-14
05.CTTB0.0502015
Complete it with (not included):
    34,00 - 50,00 - 14,00 Steel 25
PISTONE x TUFF AL.120 FIL.39x2 L-22
05.CTTB0.1203930
Complete it with (not included):
    93,00 - 120,00 - 22,00 Steel 6
PISTONE x TUFF AL.030 FIL.12x1.5 L-14
05.CTTB0.0301215
Complete it with (not included):
    20,00 - 30,00 - 14,00 Steel 8
PISTONE x TUFF AL.040 FIL.14x1.5 L-14
05.CTTB0.0401415
Complete it with (not included):
    27,00 - 40,00 - 14,00 Steel ask for times
PISTONE x TUFF AL.035 FIL.14x1.5 L-14
05.CTTB0.0351415
Complete it with (not included):
    23,00 - 35,00 - 14,00 Steel -
PISTONE x TUFF AL.045 FIL.16x1.5 L-14
05.CTTB0.0451615
Complete it with (not included):
    16,00 - 45,00 - 0,00 Steel -
PISTONE x TUFF AL.055 FIL.20x1.5 L-18
05.CTTB0.0552015
Complete it with (not included):
    38,00 - 55,00 - 18,00 Steel -
PISTONE x TUFF AL.060 FIL.20x1.5 L-18
05.CTTB0.0602015
Complete it with (not included):
    42,00 - 60,00 - 18,00 Steel -
PISTONE x TUFF AL.080 FIL.27x2 L-20
05.CTTB0.0802720
Complete it with (not included):
    60,00 - 80,00 - 20,00 Steel -
PISTONE x TUFF AL.085 FIL.27x2 L-20
05.CTTB0.0852720
Complete it with (not included):
    65,00 - 85,00 - 20,00 Steel -
PISTONE x TUFF AL.090 FIL.33x2 L-22
05.CTTB0.0903320
Complete it with (not included):
    68,00 - 90,00 - 22,00 Steel -
PISTONE x TUFF AL.100 FIL.33x2 L-22
05.CTTB0.1003320
Complete it with (not included):
    76,00 - 100,00 - 22,00 Steel -
PISTONE x TUFF AL.110 FIL.39x2 L-22
05.CTTB0.1103930
Complete it with (not included):
    86,00 - 110,00 - 22,00 Steel -
