COMPLETE CATALOGUE Rod seals PSE 343 Items

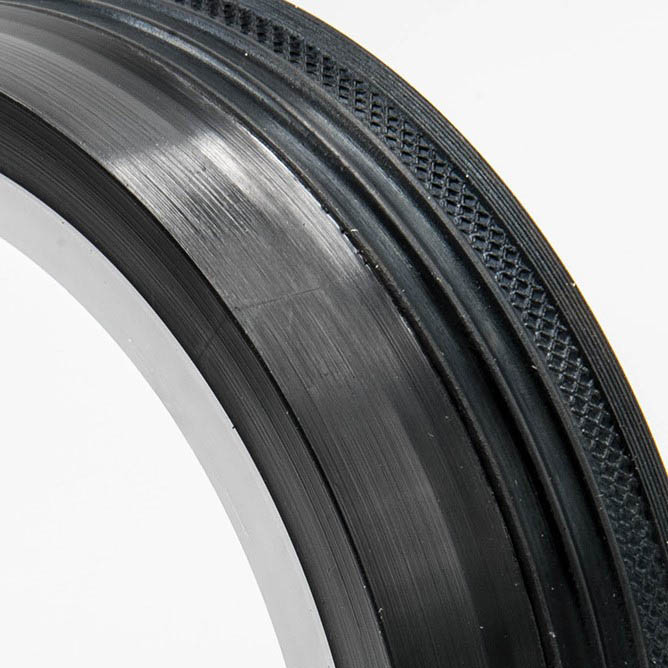

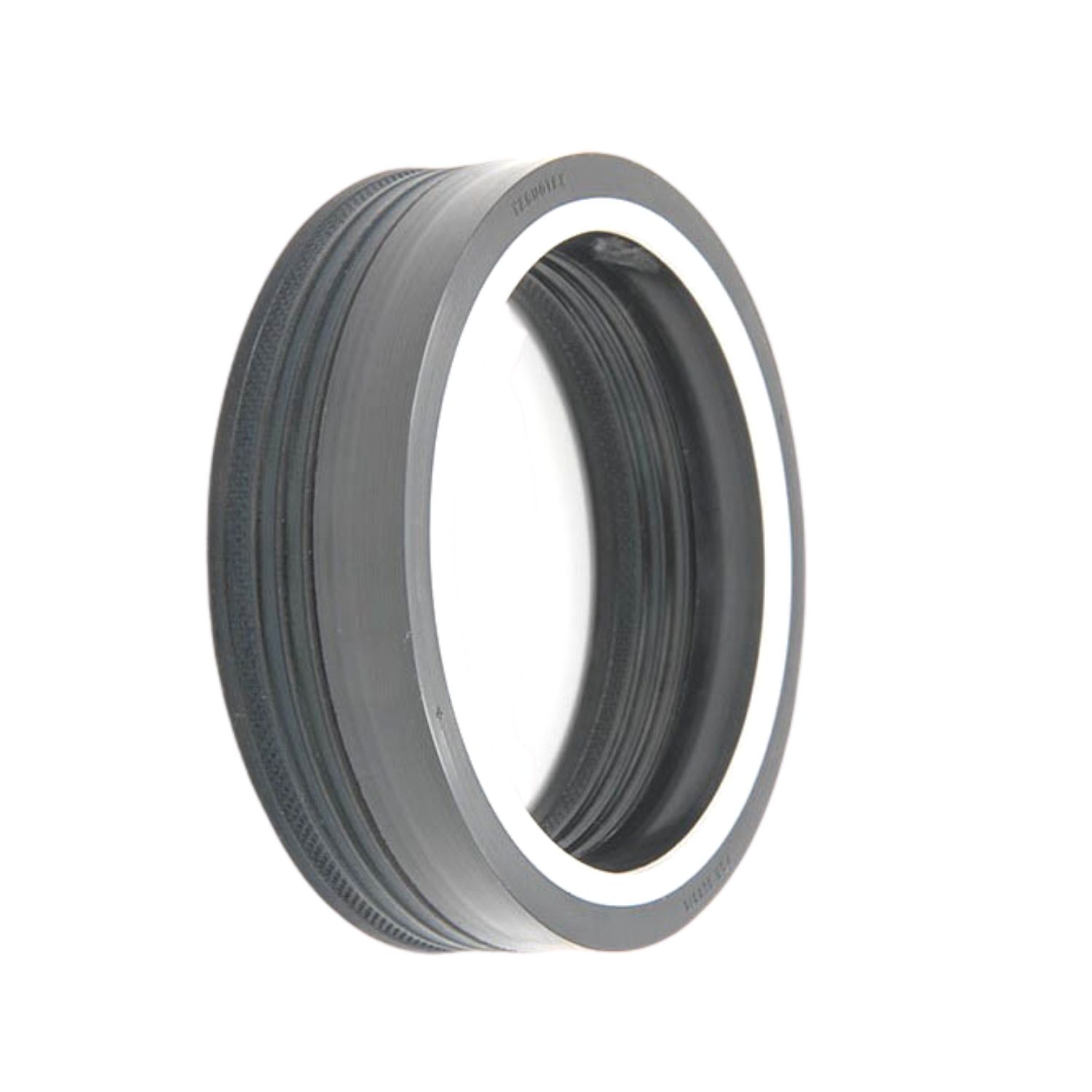

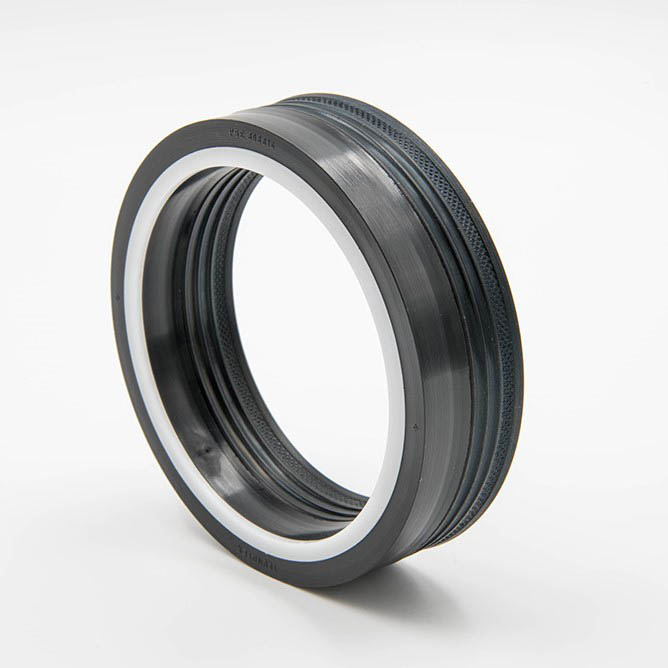

The PSE seal, due to its particular profile, is suitable for sealing on hydraulic cylinder rods, in the presence of high pressure and in particularly severe operating conditions such as vibrations and / or misalignments. It is composed of 3 elements: a sealing part in NBR material, a base ring in Fabric with an interposed anti-extrusion ring in acetal. It is available in the standard version type PSE particularly suitable for cylinders of earthmoving machinery and in the version type PSE / K whose profile is suitable for support equipment in the mining field. In addition to the standard version, PSE seals can be made with special material suitable for high temperatures. This is an alternative solution to packing seals.



-Easy assembly

-High abrasion resistance

-High resistance to extrusion

-Low deformation value



-Earth moving machines

-Excavators

-Tower crane

-Loading platforms

-Special machines
