COMPLETE CATALOGUE Rotary shaft seals COMBI 64 Items

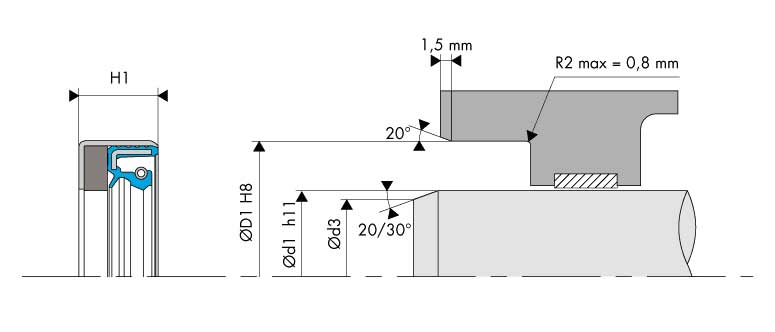

DRAWINGS

COMBI:
Material	Speed m/s	temperature °C	pressure Mpa


Nbr/steel/pu	5	-30 +80	0,05


Viton/steel/pu	6	-30 +100	0,05

Combination of an oil seal and an additional seal against dirt from the outside in one seat, spring loaded sealing lip, additional dust lip, mainly installed for use in all applications with a high level of dirt.

Suitable for overlapping rotation and translation movements.

GENERAL FEATURES

-Long duration

-High resistance to dirt ingress due to optimal positioning of the sealing lip and dust lip

-High resistance to dirt from external environment

-Suitable for protection from dry dirt

APPLICATIONS

-Agricultural machinery

- Rotating shafts

-Axles for off-road vehicles

COMBI YOU CAN REPLACE IT WITH:

DOWNLOAD THE CATALOGUE

Order by:

Avail.:

Brand:

Material:

Special Price:

Description	Dimensions(mm)	Material	Avail. (UN)
PARA COMBI SF1 12001878 D.030x042x14 01.COMBI.0304214SF1	30,00 - 42,00 - 14,00 chiudi	Nbr	-
PARA COMBI 12018179 D.030x044x11 01.COMBI.030044	30,00 - 44,00 - 11,00 chiudi	Nbr	-
PARA COMBI SF14 D.032x050x14 NBR 01.COMBI.032050F14	32,00 - 50,00 - 14,00 chiudi	Nbr	-
PARAOLIO COMBI D.035x050x10 12001881 01.COMBI.035050	35,00 - 50,00 - 10,00 chiudi	Nbr	-
PARAOLIO COMBI F6 12013466B D.035x052x16 01.COMBI.035052	35,00 - 52,00 - 16,00 chiudi	Nbr	-
PARA COMBI SF6 NBR D.035x052x17/18,5 01.COMBI.0355217	35,00 - 52,00 - 17,00 chiudi	Nbr	-
PARAOLIO SF6 COMBI 12014167 / 49351131 D.035x060x18,5 01.COMBI.035060185	35,00 - 60,00 - 18,50 chiudi	Nbr	-
PARAOLIO COMBI 12012786 D.035x062x12 01.COMBI.03506212	35,00 - 62,00 - 12,00 chiudi	Nbr	1
PARAOLIO COMBI 49432796 D.040x055x10 01.COMBI.0405510	40,00 - 55,00 - 10,00 chiudi	Nbr	39
PARAOLIO COMBI D.040x055x15,5 12018848 01.COMBI.0405515	40,00 - 55,00 - 15,50 chiudi	Nbr	-
PARAOLIO SF6 COMBI 12012107 / 49350994 D.040x060x18,5 01.COMBI.040060185	40,00 - 60,00 - 18,50 chiudi	Nbr	-
PARAOLIO COMBI 12013319 D.040x068x14 01.COMBI.04006814	40,00 - 68,00 - 14,00 chiudi	Nbr	-
PARAOLIO COMBI 12001889 D.042x062x14 01.COMBI.0426214	42,00 - 62,00 - 14,00 chiudi	Nbr	3
PARA COMBI 12001890 D.042x062x17 01.COMBI.0426217	42,00 - 62,00 - 17,00 chiudi	Nbr	-
PARAOLIO COMBI D.042x062x21,5 01.COMBI.0426221	42,00 - 62,00 - 21,50 chiudi	Nbr	-
PARAOLIO COMBI SF 12019672 D.045x060x16 01.COMBI.456016	45,00 - 60,00 - 16,00 chiudi	Nbr	-
PARA COMBI SF1 D.045x062x11 01.COMBI.045062SF1	45,00 - 62,00 - 11,00 chiudi	Nbr	-
PARAOLIO COMBI 12012296B D.045x062x11 01.COMBI.04506211	45,00 - 62,00 - 11,00 chiudi	Nbr	-
PARA COMBI SF D.045x065x12 NBR 01.COMBI.04506512	45,00 - 65,00 - 12,00 chiudi	Nbr	-
PARAOLIO COMBI D.045x065x12 12011969 01.COMBI.0456512	45,00 - 65,00 - 12,00 chiudi	Nbr	-
PARAOLIO COMBI 12001894 D.045x065x15 01.COMBI.0456515	45,00 - 65,00 - 15,00 chiudi	Nbr	-
PARAOLIO COMBI 49432795 D.048x065x11 01.COMBI.0486511	48,00 - 65,00 - 11,00 chiudi	Nbr	-
PARAOLIO COMBI 12017310 D.048x065x16,5 01.COMBI.0486516	48,00 - 65,00 - 16,50 chiudi	Nbr	-
PARAOLIO COMBI 12012503 / 49351121 D.050x075x12 01.COMBI.0507512	50,00 - 75,00 - 12,00 chiudi	Nbr	-
PARAOLIO COMBI 12011794 D.055x072x12 01.COMBI.0557212	55,00 - 72,00 - 12,00 chiudi	Nbr	-
PARA COMBI SF2 12001902 D.058x082x15 01.COMBI.0588215SFI	58,00 - 82,00 - 15,00 chiudi	Nbr	-
PARA COMBI SF NBR 12036962 D.060x075x17/18,5 01.COMBI.0607517	60,00 - 75,00 - 17,00 chiudi	Nbr	-
PARAOLIO COMBI 12014618B VITON D.060x077x14 01.COMBI.0607714V	60,00 - 77,00 - 14,00 chiudi	Viton	-
PARAOLIO COMBI 12012930 D.060x080x12 01.COMBI.06008012	60,00 - 80,00 - 12,00 chiudi	Nbr	-
PARAOLIO COMBI NAK CRS11 NBR/PU D.060x080x16,5 01.COMBI.06080SF6	60,00 - 80,00 - 16,50 chiudi	Pu/Nbr	-
PARA COMBI SF4 12011992 / 49351047 D.065x085x13/17 01.PASF4.658513	65,00 - 85,00 - 13,00 chiudi	Nbr	-
PARAOLIO COMBI ACM 19033621B D.065x095x17,5 01.COMBI.0659517ACM	65,00 - 95,00 - 17,50 chiudi	Acm	-
PARAOLIO COMBI SF2 12001905 D.070x092x15 01.COMBI.0709215	70,00 - 92,00 - 15,00 chiudi	Nbr	4
PARAOLIO COMBI 12001907 D.075x102x14 01.COMBI.075102	75,00 - 102,00 - 14,00 chiudi	Nbr	-
PARAOLIO COMBI SF6 12001908 D.080x110x16 01.COMBI.08011016	80,00 - 110,00 - 16,00 chiudi	Nbr	-
PARAOLIO COMBI 12001909 D.085x110x16 01.COMBI.08511016	85,00 - 110,00 - 16,00 chiudi	Nbr	-
PARAOLIO COMBI 12001910 D.090x120x13 01.PARCO.090120	90,00 - 120,00 - 13,00 chiudi	Nbr	-
PARAOLIO COMBI 12012399 D.095x120x13 01.COMBI.095120	95,00 - 120,00 - 13,00 chiudi	Nbr	-
PARA COMBI SF12 D.100x130x16 NBR 01.COMBI.10013016	100,00 - 130,00 - 16,00 chiudi	Nbr	-
PARAOLIO COMBI 12001912 D.100x130x16 01.COMBI.100130	100,00 - 130,00 - 16,00 chiudi	Nbr	-
PARAOLIO COMBI SF12 (72 NBR 902) 12013194 D.100x130x16 01.COMBI.10013016F12	100,00 - 130,00 - 16,00 chiudi	Nbr	-
PARAOLIO COMBI 522305 D.100x190x12/22 01.COMBI.10019012	100,00 - 190,00 - 12,00 chiudi	Nbr	-
PARAOLIO COMBI 12001913 D.105x125x16 01.COMBI.10512516	105,00 - 125,00 - 16,00 chiudi	Nbr	-
PARA COMBI NBR 12011717 D.105x130x12 01.COMBI.105130	105,00 - 130,00 - 12,00 chiudi	Nbr	-
PARAOLIO COMBI NBR 12015364 D.110x130x16 01.PCOMB.110130F	110,00 - 130,00 - 16,00 chiudi	Pu/Nbr	-
PARAOLIO COMBI NBR/PU D.110x130x16 01.PCOMB.110130	110,00 - 130,00 - 16,00 chiudi	Pu/Nbr	-
PARAOLIO COMBI D.110x150x16 01.COMBI.110150	110,00 - 150,00 - 16,00 chiudi	Nbr	-
PARAOLIO COMBI NBR/PU D.120x150x15 01.PCOMB.120150	120,00 - 150,00 - 15,00 chiudi	Pu/Nbr	5
PARAOLIO COMBI 12001919 D.130x160x16 01.COMBI.130160	130,00 - 160,00 - 16,00 chiudi	Nbr	-
PARAOLIO COMBI D.130x170x16 NBR 01.COMBI.13017016	130,00 - 170,00 - 16,00 chiudi	Nbr	-
ACM PARAOLIO COMBI 12013067 D.136x165,50x16 01.COMBI.136165	136,00 - 165,50 - 16,00 chiudi	Acm	-
PARAOLIO COMBI 12001922 D.145x170x16 01.COMBI.145170	145,00 - 170,00 - 16,00 chiudi	Nbr	-
PARAOLIO COMBI D.148x170x14 01.COMBI.148170	148,00 - 170,00 - 14,00 chiudi	Nbr	-
PARAOLIO COMBI 12001923 / 49433697 D.150x170x16 01.PCOMB.150170	150,00 - 170,00 - 16,00 chiudi	Nbr	-
PARAOLIO COMBI 12001924 D.155x176x16 01.PCOMB.155176	155,00 - 176,00 - 16,00 chiudi	Nbr	2
PARAOLIO COMBI D.165x190x17 01.COMBI.165190	165,00 - 190,00 - 0,00 chiudi	Nbr	-
PARAOLIO COMBI 128325 D.165x190x15 01.COMBI.16519015	165,00 - 190,00 - 15,00 chiudi	Nbr	-
PARAOLIO COMBI 12001925/49433699 D.165x190x17 01.COMBI.16519017	165,00 - 190,00 - 17,00 chiudi	Nbr	-
PARAOLIO COMBI 49433731 D.170x190x15 01.COMBI.17019015	170,00 - 190,00 - 15,00 chiudi	Nbr	-
PARAOLIO COMBI 12011690 D.180x205x17 01.COMBI.18020517	180,00 - 205,00 - 17,00 chiudi	Nbr	-
PARAOLIO COMBI 49433730/12001926 D.190x220x20 01.COMBI.190220	190,00 - 220,00 - 20,00 chiudi	Nbr	16
PARAOLIO COMBI D.190x220x20 01.COMBI.19022020	190,00 - 220,00 - 20,00 chiudi	Nbr	-
PARAOLIO COMBI NBR/PU D.220x250x15 01.COMBI.22025015	220,00 - 250,00 - 15,00 chiudi	Nbr	-
PARAOLIO COMBI 12001928 D.220x250x20 01.COMBI.22025020	220,00 - 250,00 - 20,00 chiudi	Nbr	-
