COMPLETE CATALOGUE Rotary shaft seals COMBI F 19 3 Items

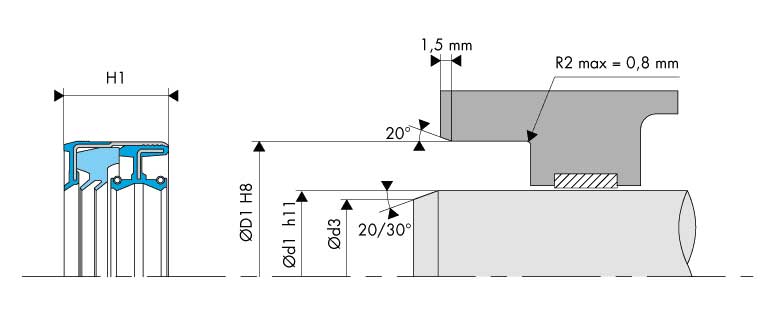

DRAWINGS

COMBI F 19:
Material Speed m/s temperature °C pressure Mpa
Nbr/steel/pu 4 -30 +80 0,05
  • COMBI F 19

The Combi Seal SF19 oil seal has the characteristic of being covered also on the outer diameter where the static sealing is guaranteed.

It features an additional dust lip in polyurethane and one in elastomer.
It consists of at least two assembled elements, which are preferably used in agriculture and in construction machinery. Additionally, the PU element in this system can provide effective sealing for small axial movements.
Combination of an oil seal and an additional seal against dirt from outside in one seat, spring loaded sealing lip, additional dust lip, mainly installed for use in all applications with a high level of dirt.
Suitable for overlapping rotation and translation movements.

GENERAL FEATURES
- Long duration
- High resistance to dirt ingress due to optimal positioning of the sealing lip and dust lip.
- High resistance to dirt from external environment
- Suitable for protection from dry dirt

APPLICATIONS
- Agricultural machinery
- Rotating shafts
- Axles for off-road vehicles

COMBI F 19 YOU CAN REPLACE IT WITH:
Order by:
Avail.:
Brand:
Special Price:
Description Brand Dimensions(mm) Material Avail. (UN)
PARA COMBI SF19 49319989 D.048x065x19 NBR
01.COMBI.048065
    48,00 - 65,00 - 19,00 Nbr -
PARA COMBI SF19 D.050x080x27,5
01.COMBI.0508027
    50,00 - 80,00 - 27,50 Nbr -
PARA COMBI SF19 49447994 D.065x090x20 FKM
01.COMBI.065090
    65,00 - 90,00 - 20,00 Nbr -
