COMPLETE CATALOGUE Mechanical face seals TLD 189 Items

The mechanical face seals are specifically designed to seal the lubricant excluding contamination in rotating applications in the most adverse conditions such as mud, rocks, sand, water, high and low temperatures, etc.

Mechanical face seals or heavy duty seals have been specifically designed for rotating applications in critical environments.

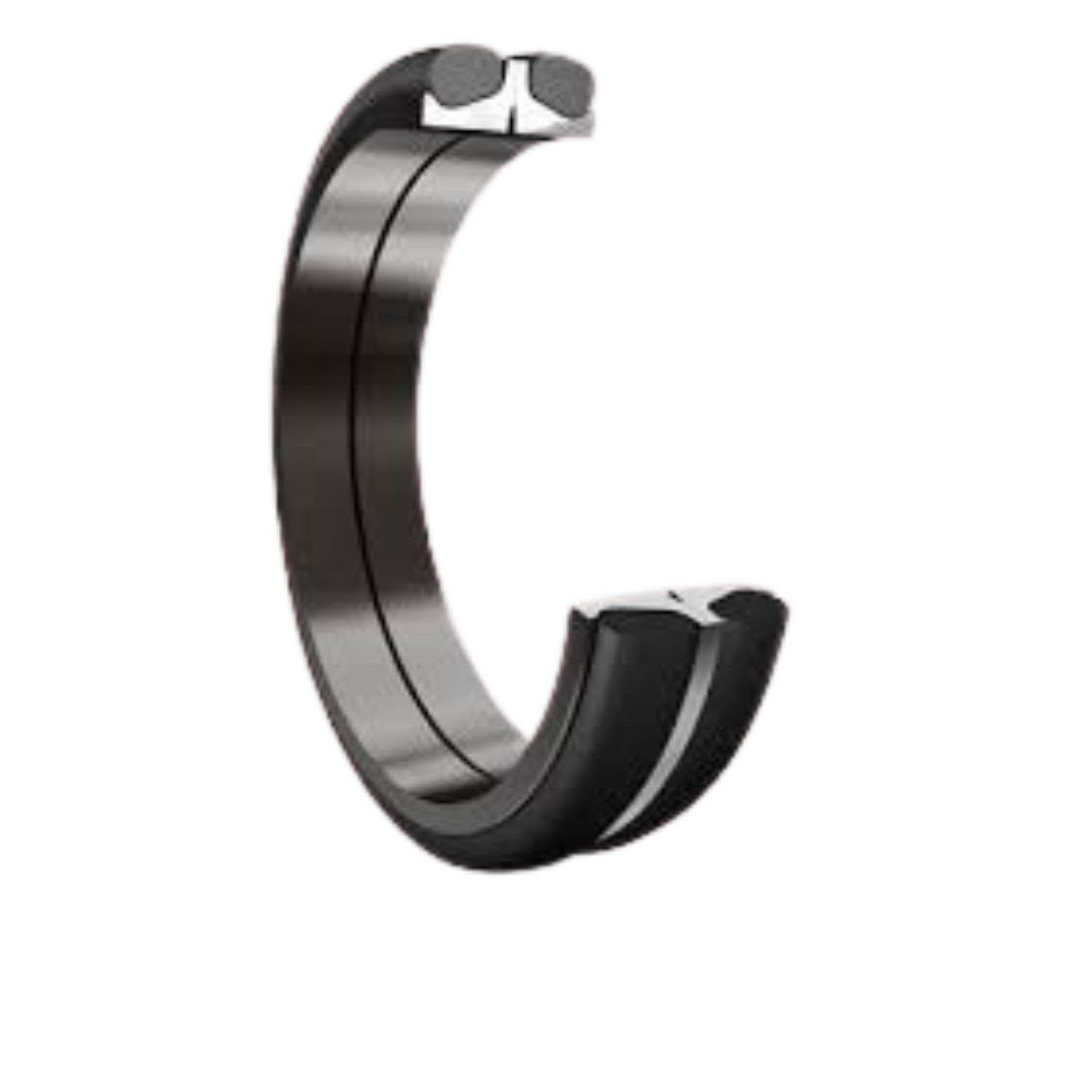

The seals are composed of two metal rings, one static and one rotating, with high hardness that use the contact between mirror-lapped surfaces to guarantee static and dynamic sealing; these are compressed and centered by two load rings in rubber resistant to oil and abrasion.

Rotation speed, type of lubricant, operating temperature and pressure are factors to be taken into consideration when determining the load on the seal.

They can be in two versions:

- Toroidal rubber load ring, recommended for applications requiring reduced radial dimensions.
- Rhomboidal load ring, recommended for applications requiring reduced axial dimensions.

They are also known as Lifetime Seal, Floating Seal, Duo Cone Seal, Toric Seal. Mechanism espejo (Spanish), Mekaniska Glidringstätningar (Swedish).

GENERAL CHARACTERISTICS

- High resistance to abrasion

- Applications in adverse conditions

- Application in critical contexts

 APPLICATIONS

- Motor vehicles, such as excavators

- Conveyor systems

- Heavy trucks

- Axes

- Tunnel drilling machines

- Agricultural machinery

-Mine machines

-Wind power stations
