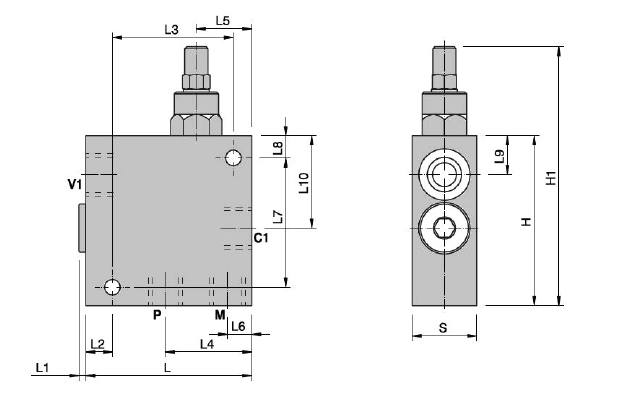

USE This valve allows the oil arriving at C 1 from the rod to be recovered and sent to the end plug through port P, adding it to the pump flow rate. When the pressure in the cylinder end plug reaches the calibration value, the oil arriving from the rod is sent to the tank through port Vl, thus restoring a non-regenerative system with maximum thrust. The override pressure of the regenerative only depends on the pressure in the cylinder end plug. MATERIALS AND CHARACTERISTICS Body: galvanised steel Internal components: thermally hardened and ground steel Seals: BUNAN standard Seal: negligible leakage MOUNTING Connect Cl to the cylinder rod, VI to the supply, P to the cylinder end plug and supply at the same time, and M to the pressure gauge, if present.
