COMPLETE CATALOGUE End Plugs CFHR 38 Items



DRAWINGS

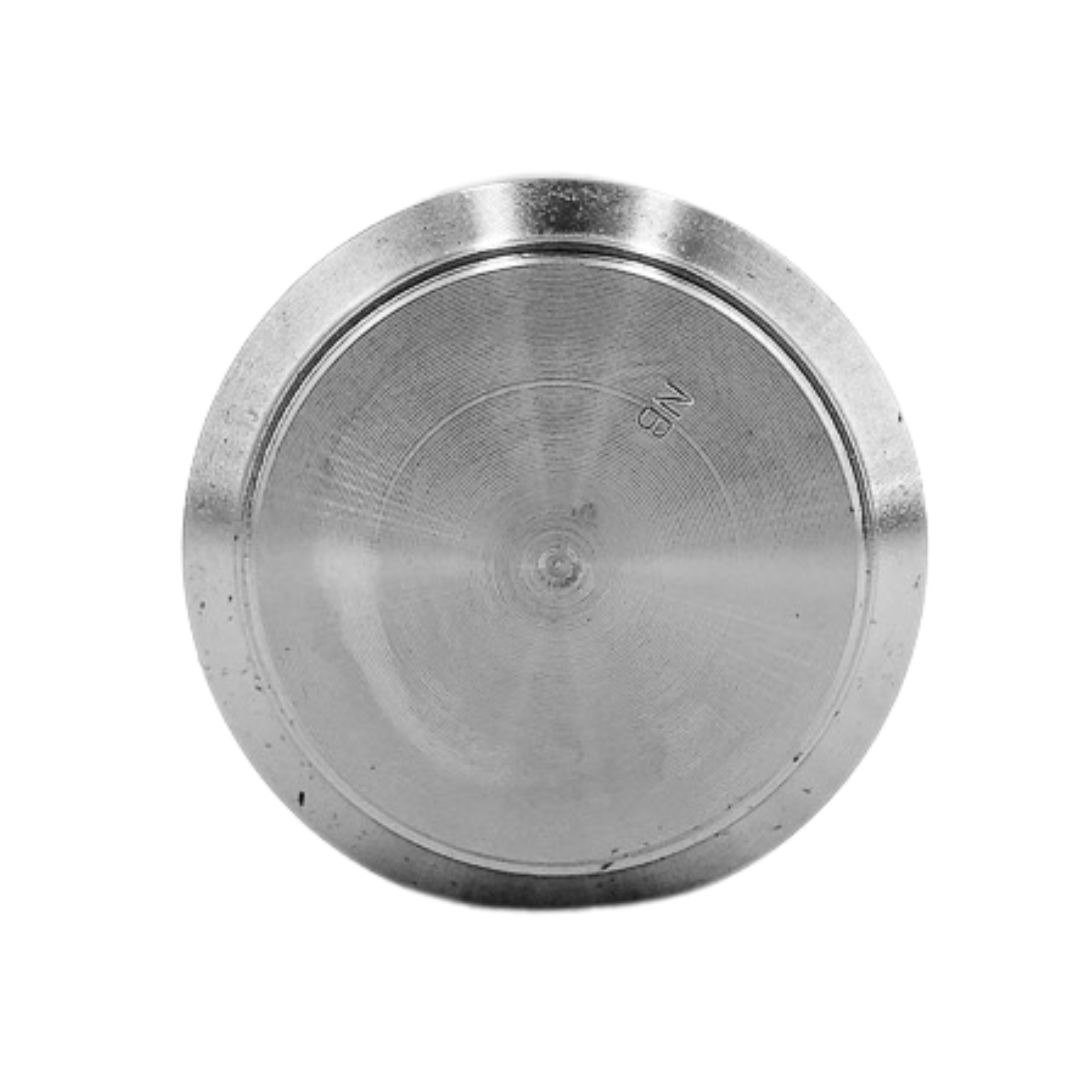

 The endplug of the series CFHR is a semi-finished product suitable to manufacture single and double acting hydraulic cylinders. Made of steel Fe510C, it is equipped with a mounting hole so that to avoid welding further attachments. It is a basic component of our standard cylinders HFR/HFR2S. It is a very versatile item, particularly used in the mobile, in the agricultural and in the industrial sectors.




CFHR YOU CAN REPLACE IT WITH:
  • CFHR
Order by:
Avail.:
Brand:
Special Price:
Description Brand Dimensions(mm) Material Avail. (UN)
END-PLUG WITH HOLE – “CFHR” TYPE Ø40xØ50 F.Ø20,25
05.CFHR0.040020040
     40,00 - 50,00 - 40,00 Steel 1
END-PLUG WITH HOLE – “CFHR” TYPE Ø50xØ60 F.Ø25,50
05.CFHR0.060050
     50,00 - 60,00 - 70,00 Steel 19
END-PLUG WITH HOLE – “CFHR” TYPE Ø90xØ105 F.Ø35,25
05.CFHR0.090035063
     90,00 - 105,00 - 63,00 Steel 2
END-PLUG WITH HOLE – “CFHR” TYPE Ø40xØ50 F.Ø20,50
05.CFHR0.050040
     40,00 - 50,00 - 49,00 Steel 22
END-PLUG WITH HOLE – “CFHR” TYPE Ø50xØ60 F.Ø25,25
05.CFHR0.050025049
     50,00 - 60,00 - 25,25 Steel 3
END-PLUG WITH HOLE – “CFHR” TYPE Ø32xØ40 F.Ø16,00
05.CFHR0.040032
     32,00 - 40,00 - 40,00 Steel 4
END-PLUG WITH HOLE – “CFHR” TYPE Ø100xØ115 F.Ø30,50
05.CFHR0.115100
    100,00 - 115,00 - 70,00 Steel 5
END-PLUG WITH HOLE – “CFHR” TYPE Ø120xØ140 F.Ø50,50
05.CFHR0.120050095
    120,00 - 140,00 - 95,00 Steel 5
END-PLUG WITH HOLE – “CFHR” TYPE Ø100xØ115 F.Ø30,25
05.CFHR0.100030063
    100,00 - 115,00 - 63,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø100xØ115 F.Ø40,25
05.CFHR0.100040063
    100,00 - 115,00 - 63,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø110xØ125 F.Ø40,25
05.CFHR0.110040075
    110,00 - 125,00 - 75,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø110xØ125 F.Ø50,50
05.CFHR0.110050075
    110,00 - 125,00 - 50,50 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø120xØ140 F.Ø60,50
05.CFHR0.120060095
    120,00 - 140,00 - 95,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø125xØ145 F.Ø50,50
05.CFHR0.125050095
    125,00 - 145,00 - 95,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø125xØ145 F.Ø60,50
05.CFHR0.125060095
    125,00 - 145,00 - 95,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø140xØ160 F.Ø60,50
05.CFHR0.140060110
    140,00 - 160,00 - 110,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø140xØ160 F.Ø70,50
05.CFHR0.140070110
    140,00 - 160,00 - 110,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø150xØ170 F.Ø70,50
05.CFHR0.150070130
    150,00 - 170,00 - 130,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø160xØ180 F.Ø80,50
05.CFHR0.160080140
    160,00 - 180,00 - 140,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø25xØ35 F.Ø12,10
05.CFHR0.035025
     25,00 - 35,00 - 30,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø35xØ45 F.Ø16,10
05.CFHR0.035016035
     35,00 - 45,00 - 35,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø45xØ55 F.Ø20,25
05.CFHR0.045020045
     45,00 - 55,00 - 45,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø55xØ65 F.Ø25,25
05.CFHR0.055025050
     55,00 - 65,00 - 50,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø60xØ70 F.Ø25,25
05.CFHR0.060025047
     60,00 - 70,00 - 47,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø60xØ70 F.Ø25,50
05.CFHR0.070060
     60,00 - 70,00 - 52,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø60xØ70 F.Ø30,25
05.CFHR0.060030047
     60,00 - 70,00 - 47,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø63xØ73 F.Ø25,25
05.CFHR0.063025053
     63,00 - 73,00 - 53,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø63xØ73 F.Ø30,25
05.CFHR0.063030053
     63,00 - 73,00 - 53,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø70xØ80 F.Ø30,25
05.CFHR0.070030063
     70,00 - 80,00 - 63,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø70xØ80 F.Ø30,50
05.CFHR0.080070
     70,00 - 80,00 - 62,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø75xØ90 F.Ø30,25
05.CFHR0.075030060
     75,00 - 90,00 - 60,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø80xØ90 F. Ø40,25
05.CFHR0.080040060
     80,00 - 90,00 - 60,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø80xØ90 F.Ø30,25
05.CFHR0.080030060
     80,00 - 90,00 - 60,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø80xØ90 F.Ø30,50
05.CFHR0.090080
     80,00 - 90,00 - 62,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø85xØ100 F.Ø35,25
05.CFHR0.085035063
     85,00 - 100,00 - 63,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø90xØ105 F.Ø40,25
05.CFHR0.090040063
     90,00 - 105,00 - 63,00 Steel 6
END-PLUG WITH HOLE – “CFHR” TYPE Ø65xØ75 F.Ø25,25
05.CFHR0.065025050
     65,00 - 75,00 - 50,00 Steel ask for times
END-PLUG “CFHR” TYPE Ø60xØ50 F.Ø23
05.CFHR0.050023050
     50,00 - 60,00 - 23,10 Steel -
