COMPLETE CATALOGUE End Plugs CFHRT 5 Items

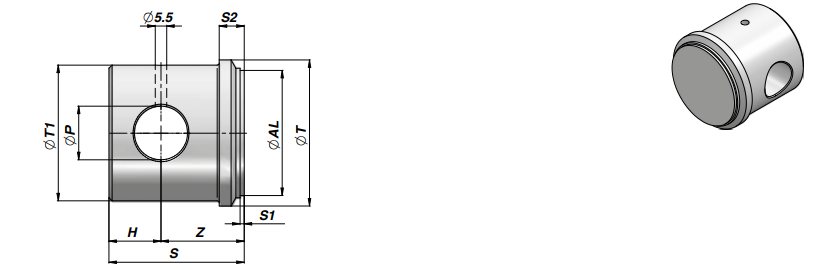

DRAWINGS

 The endplug of the series CFHFRT is a semi-finished product suitable to manufacture single and double acting hydraulic cylinders. Made of steel Fe510C, it is equipped with a mounting hole so that to avoid welding further attachments. It is a basic component of our standard cylinders HFRT. It is a very versatile item, particularly used in the mobile, in the agricultural and in the industrial sectors.



CFHRT YOU CAN REPLACE IT WITH:
  • CFHRT
Order by:
Avail.:
Brand:
Special Price:
Description Brand Dimensions(mm) Material Avail. (UN)
END-PLUG "CFHR" TYPE Ø70xØ60 F.Ø25.5
05.CFHRT.070600
    60,00 - 70,00 - 65,00 Steel -
END-PLUG "CFHR" TYPE Ø90xØ80 F.Ø30.25
05.CFHRT.090800
    80,00 - 90,00 - 70,00 Steel -
FONDELLO PER HFRT D.40xØ30 F.14
05.CFHRT.030014030
    40,00 - 30,00 - 30,00 Steel -
FONDELLO PER HFRT D.60xØ50 F.Ø23
05.CFHRT.050023050
    50,00 - 60,00 - 50,00 Steel -
END-PLUG “CFHR” TYPE D.Ø80xØ70 F.Ø25.25
05.CFHRT.080700
    70,00 - 80,00 - 60,00 Steel -
