COMPLETE CATALOGUE End Plugs CFPM 40 Items

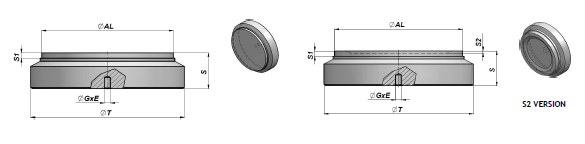

DRAWINGS

 The endplug of the series CFPM is a semi-finished product suitable to manufacture single and double acting hydraulic cylinders subjects to heavy loads. Made of steel Fe510C, thanks to its thickness, it is highly advisable in applications where the endplug is subject to strong stresses. The product is particularly used in the earth-moving and industrial sectors.

CFPM YOU CAN REPLACE IT WITH:
  • CFPM
Order by:
Avail.:
Brand:
Special Price:
Description Brand Dimensions(mm) Material Avail. (UN)
END PLUG CFPM D. Ø100-Ø115 SP.30
05.CFPM0.115100030
    100,00 - 115,00 - 30,00 Steel 1
END PLUG CFPM D. Ø110-Ø125 SP.31
05.CFPM0.125110031
    110,00 - 125,00 - 31,00 Steel 1
END PLUG CFPM D. Ø63-Ø75 SP.19
05.CFPM0.075063019
     63,00 - 75,00 - 19,00 Steel 10
END PLUG CFPM- D. Ø60-Ø75 SP.20
05.CFPM0.075060020
     60,00 - 75,00 - 20,00 Steel 10
END PLUG CFPM- D. Ø63-Ø75 SP.22
05.CFPM0.075063022
     63,00 - 75,00 - 22,00 Steel 10
END PLUG CFPM D. Ø50-065 SP.17
05.CFPM0.065050017
     50,00 - 65,00 - 17,00 Steel 12
END PLUG CFPM D. Ø150-Ø170 SP.42
05.CFPM0.170150042
    150,00 - 170,00 - 42,00 Steel 2
END PLUG CFPM D. Ø60-Ø70 SP.19
05.CFPM0.070060019
     60,00 - 70,00 - 19,00 Steel 2
END PLUG CFPM- D. Ø125-Ø145 SP.45
05.CFPM0.145125045
    125,00 - 145,00 - 45,00 Steel 2
END PLUG CFPM- D. Ø140-Ø165 SP.50
05.CFPM0.165140050
    140,00 - 165,00 - 50,00 Steel 2
END PLUG CFPM D. Ø120-Ø140 SP.34
05.CFPM0.140120034
    120,00 - 140,00 - 34,00 Steel 20
END PLUG CFPM D. Ø100-Ø120 SP.30
05.CFPM0.120100030
    100,00 - 120,00 - 30,00 Steel 21
END PLUG CFPM D. Ø80-Ø95 SP.25
05.CFPM0.095080025
     80,00 - 95,00 - 25,00 Steel 25
END PLUG D. Ø50-Ø60 SP.17
05.CFPM0.060050017
     50,00 - 60,00 - 17,00 Steel 29
END PLUG CFPM D. Ø120-Ø145 SP.34
05.CFPM0.145120034
    120,00 - 145,00 - 34,00 Steel 3
END PLUG CFPM D. Ø140-Ø160 SP.40
05.CFPM0.160140040
    140,00 - 160,00 - 40,00 Steel 3
END PLUG CFPM D. Ø140-Ø170 SP.40
05.CFPM0.170140040
    140,00 - 170,00 - 40,00 Steel 3
END PLUG CFPM D. Ø150-Ø180 SP.42
05.CFPM0.180150042
    150,00 - 180,00 - 42,00 Steel 3
END PLUG CFPM- D. Ø120-Ø145 SP.42
05.CFPM0.145120042
    120,00 - 145,00 - 42,00 Steel 3
END PLUG CFPM- D. Ø160-Ø190 SP.65
05.CFPM0.190160065
    160,00 - 190,00 - 65,00 Steel 3
END PLUG CFPM D. Ø70-Ø80 SP.22
05.CFPM0.080070022
     70,00 - 80,00 - 22,00 Steel 4
END PLUG CFPM- D. Ø150-Ø180 SP.60
05.CFPM0.180150060
    150,00 - 180,00 - 60,00 Steel 4
END PLUG CFPM- D. Ø100-Ø120 SP.35
05.CFPM0.120100035
    100,00 - 120,00 - 35,00 Steel 44
END PLUG CFPM D. Ø60-Ø75 SP.19
05.CFPM0.075060019
     60,00 - 75,00 - 19,00 Steel 5
END PLUG CFPM D. Ø80-Ø100 SP.25
05.CFPM0.100080025
     80,00 - 100,00 - 25,00 Steel 5
END PLUG CFPM- D. Ø80-Ø100 SP.30
05.CFPM0.100080030
     80,00 - 100,00 - 30,00 Steel 5
END PLUG CFPM D. Ø90-Ø105 SP.26
05.CFPM0.105090026
     90,00 - 105,00 - 26,00 Steel 6
END PLUG CFPM- D. Ø110-Ø130 SP.38
05.CFPM0.130110038
    110,00 - 130,00 - 38,00 Steel 6
END PLUG CFPM- D. Ø70-Ø85 SP.28
05.CFPM0.085070028
     70,00 - 85,00 - 28,00 Steel 6
END PLUG CFPM D. Ø160-Ø190 SP.45
05.CFPM0.190160045
    160,00 - 190,00 - 45,00 Steel 7
END PLUG CFPM D. Ø75-Ø90 SP.22
05.CFPM0.090075022
     75,00 - 90,00 - 22,00 Steel 7
END PLUG CFPM D. Ø85-Ø100 SP.25
05.CFPM0.100085025
     85,00 - 100,00 - 25,00 Steel 7
END PLUG CFPM- D. Ø90-Ø110 SP.35
05.CFPM0.110090035
     90,00 - 110,00 - 35,00 Steel 7
END PLUG CFPM D. Ø125-Ø150 SP.35
05.CFPM0.150125035
    125,00 - 150,00 - 35,00 Steel 8
END PLUG CFPM- D. Ø50-Ø65 SP.20
05.CFPM0.065050020
     50,00 - 65,00 - 20,00 Steel 8
END PLUG CFPM D. Ø125-Ø145 SP.35
05.CFPM0.145125035
    125,00 - 145,00 - 35,00 Steel 9
END PLUG CFPM D. Ø110-Ø130 SP.31
05.CFPM0.130110031
    110,00 - 130,00 - 31,00 Steel ask for times
END PLUG CFPM D. Ø160-Ø180 SP.45
05.CFPM0.180160045
    160,00 - 180,00 - 45,00 Steel ask for times
END PLUG CFPM D. Ø70-Ø85 SP.22
05.CFPM0.085070022
     70,00 - 85,00 - 22,00 Steel -
END PLUG CFPM D. Ø90-Ø110 SP.26
05.CFPM0.110090026
     90,00 - 110,00 - 26,00 Steel -
