COMPLETE CATALOGUE End Plugs CFVP 8 Items

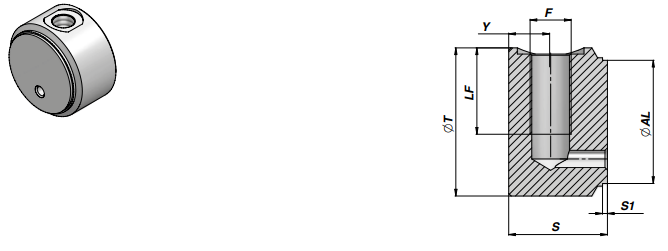

DRAWINGS

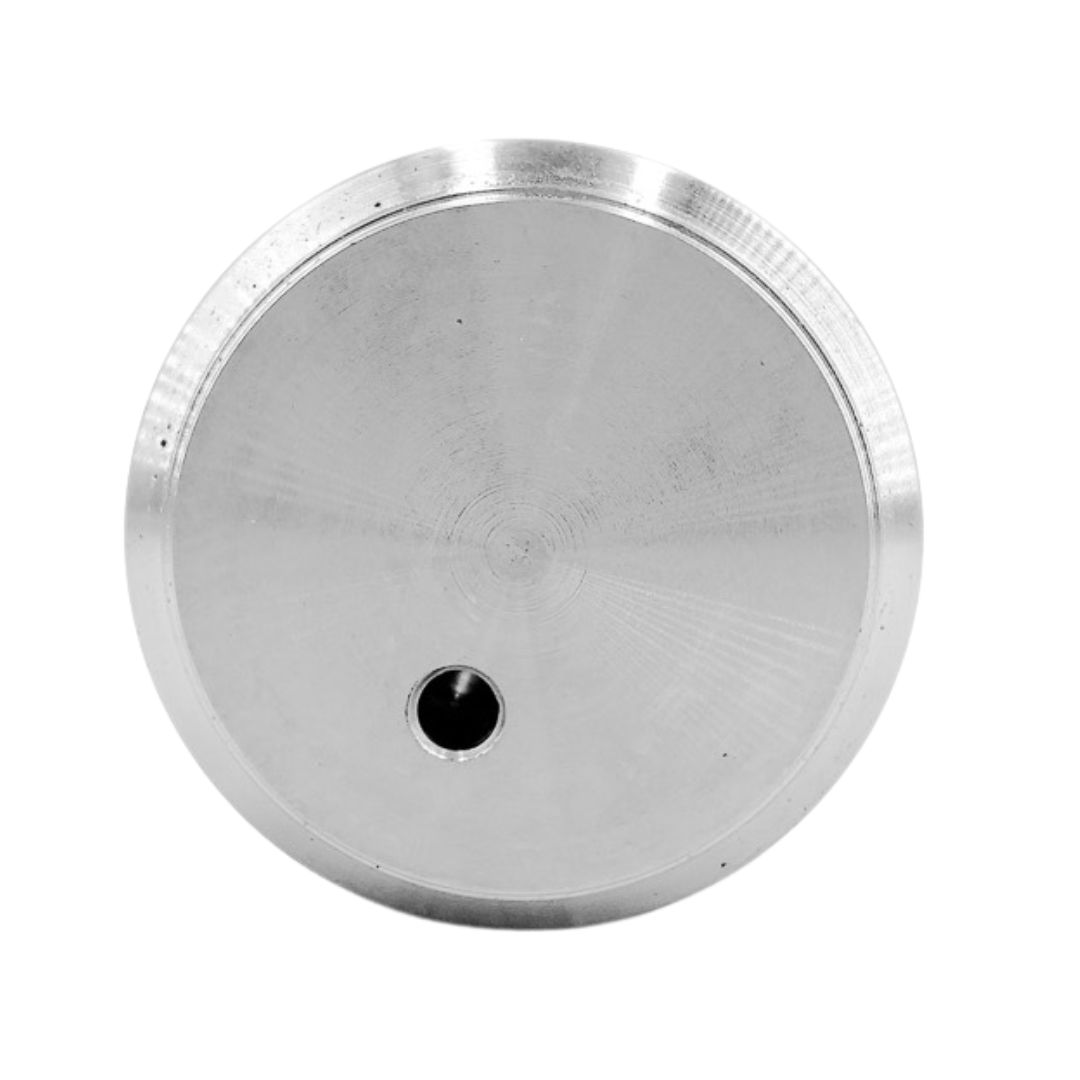

 The endplug of the series CFVP is a semi-finished product suitable to manufacture single and double acting hydraulic cylinders. Made of steel Fe510C, it is equipped with a threaded oil inlet port for the insertion of a catridge valve (e.g. hose burst valve). It is a very versatile item, particularly used in the mobile, in the agricultural and in the industrial sectors.



CFVP YOU CAN REPLACE IT WITH:
  • CFVP
Order by:
Avail.:
Brand:
Special Price:
Description Brand Dimensions(mm) Material Avail. (UN)
END-PLUG WITH INLET PORT “CFVP” TYPE Ø60/Ø70 3/8"
05.CFVP0.06007006
    60,00 - 70,00 - 40,00 Steel 15
END-PLUG WITH INLET PORT “CFVP” TYPE Ø80/Ø95 1/2"
05.CFVP0.08009508
    80,00 - 95,00 - 0,00 Steel 4
END-PLUG WITH INLET PORT “CFVP” TYPE Ø50/Ø60 3/8"
05.CFVP0.05006006
    50,00 - 60,00 - 40,00 Steel 52
END-PLUG WITH INLET PORT “CFVP” TYPE Ø63/Ø73 3/8"
05.CFVP0.06307306
    63,00 - 73,00 - 40,00 Steel 9
END-PLUG WITH INLET PORT “CFVP” TYPE Ø100/Ø115 1/2"
05.CFVP0.10011508
   100,00 - 115,00 - 0,00 Steel -
END-PLUG WITH INLET PORT “CFVP” TYPE Ø40/Ø50 1/4"
05.CFVP0.04005004
    40,00 - 50,00 - 40,00 Steel -
END-PLUG WITH INLET PORT “CFVP” TYPE Ø70/Ø80 3/8"
05.CFVP0.07008006
    70,00 - 80,00 - 40,00 Steel -
END-PLUG WITH INLET PORT “CFVP” TYPE Ø90/Ø105 1/2"
05.CFVP0.09010508
    90,00 - 105,00 - 0,00 Steel -
