COMPLETE CATALOGUE GEAR HYDRAULIC PUMPS XV2P 43 Items

DRAWINGS

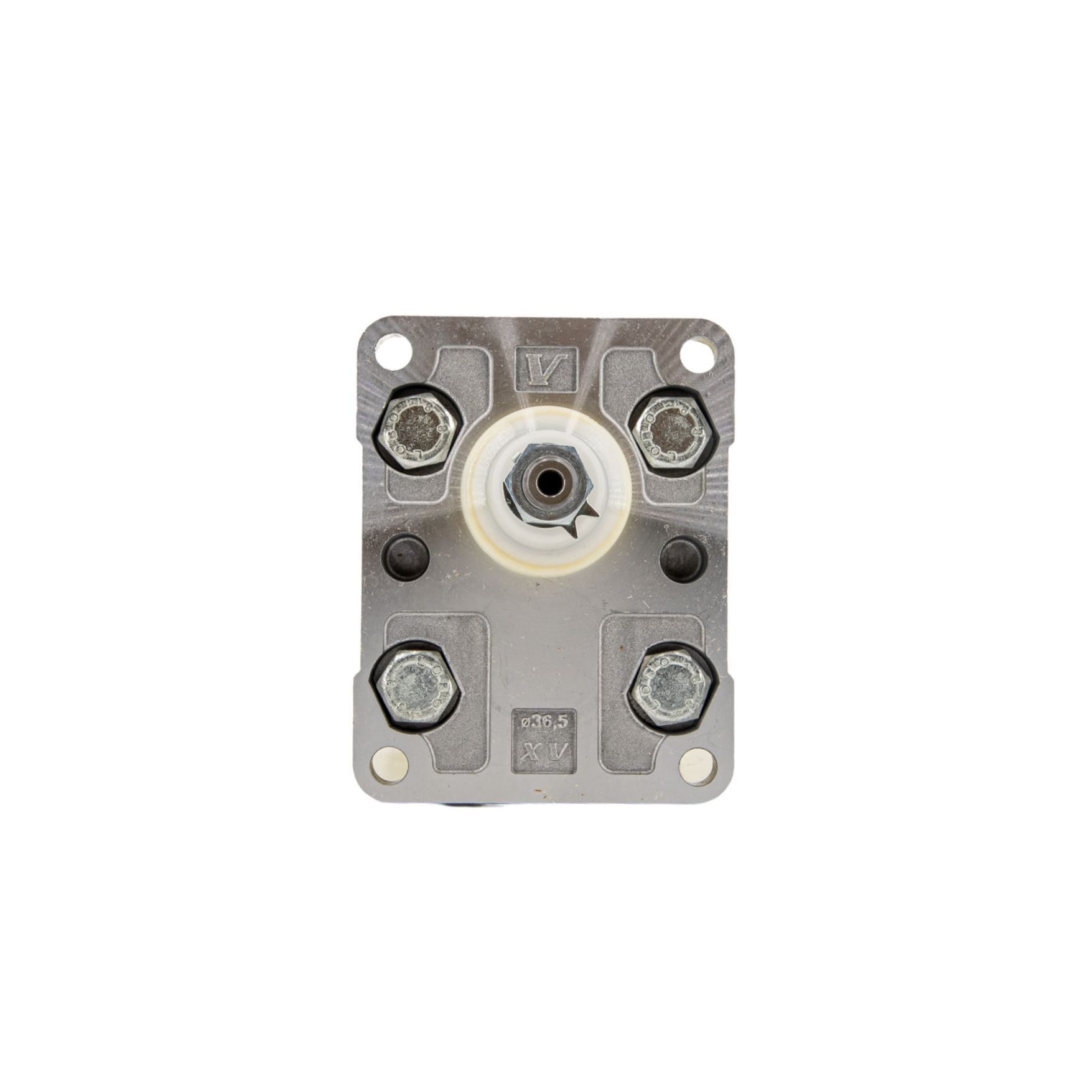

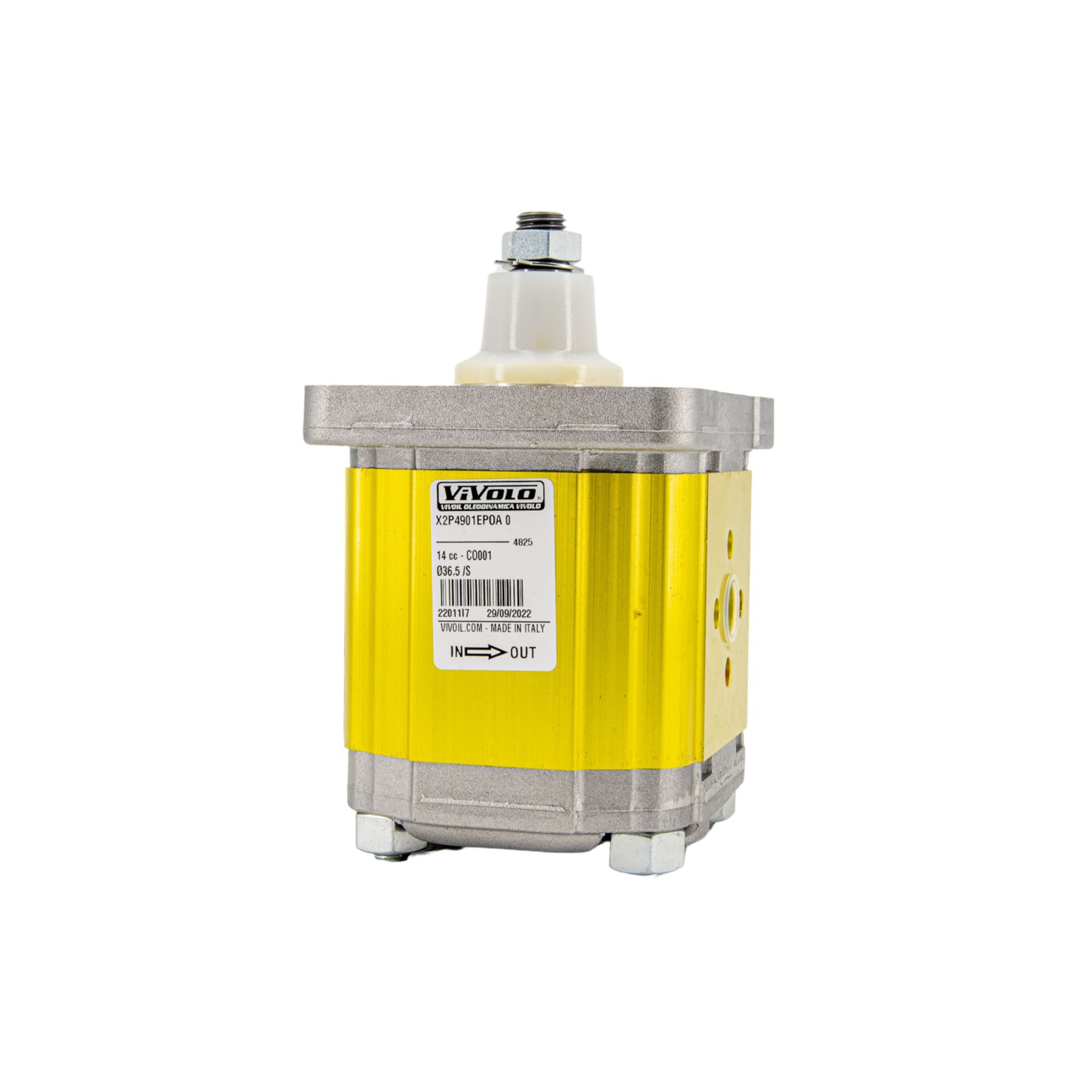

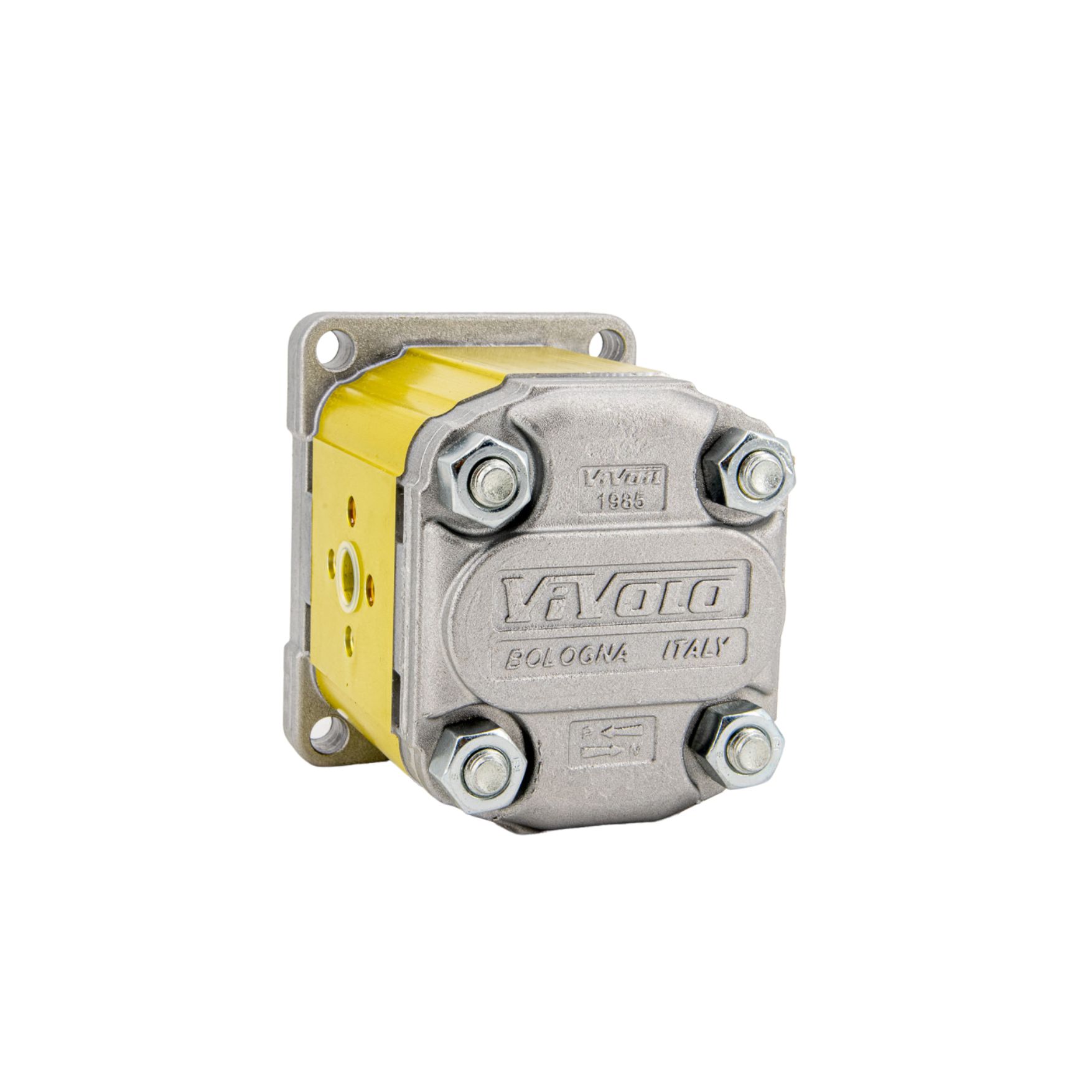

Unidirectional hydraulic pumps

The rotation direction is clockwise or counterclockwise and it is possible to invert it without adding any components, so you can optimize the space in the warehouse and adapt the pump to your needs.

The 'XV-1/2/3' series gear pumps have the following assemblies, displacements and pressures: GR.1 from 0.9 to 9.8 cm3/rev - P.max 300 bar, GR.2 from 4 to 40 cm3/rev - P.max 300 bar, GR.3 from 15 to 90 cm3/rev - P.max 300 bar.

Hydrostatic balancing corrects the axial play of the gears.

Average volumetric efficiency: 95%.
The lubrication of the bearing bushings is automatic and proportional to the working pressure used. Flanges and shafts are interchangeable.

XV2P YOU CAN REPLACE IT WITH:

Download PDF

Order by:

Avail.:

Brand:

Special Price:

Description	Dimensions(mm)	Avail. (UN)
XV2P/14 - Ø36.5 /S - CO001 - Ø40 M8 - Ø30 M6 -SINISTRA 05.X2P00.4901EPOA	104,20 - 50,20 - 0,00 chiudi	1
XV2P/17 - Ø36.5 /D - CO001 - Ø40 M8 - Ø30 M6 -DESTRA 05.X2P00.5102EPOA	108,20 - 52,20 - 0,00 chiudi	1
XV2P/26 - Ø36.5 /D - CO001 - Ø40 M8 - Ø40 M8 -DESTRA 05.X2P00.5702EQPA	122,20 - 59,20 - 0,00 chiudi	1
XV2P/34 - Ø36.5 /D - CO001 - Ø40 M8 - Ø40 M8 -DESTRA 05.X2P00.6102EQPA	137,20 - 66,70 - 0,00 chiudi	1
XV2P/9 - Ø36.5 /D - CO001 - Ø30 M6 - Ø30 M6 -DESTRA 05.X2P00.4502EOOA	94,20 - 45,20 - 0,00 chiudi	1
XV2P/9 - Ø36.5 /S - CO001 - Ø30 M6 - Ø30 M6 -SINISTRA 05.X2P00.4501EOOA	94,20 - 45,20 - 0,00 chiudi	1
XV2P/14 - Ø36.5 /D - CO001 - Ø40 M8 - Ø30 M6 -DESTRA 05.X2P00.4902EPOA	104,20 - 50,20 - 0,00 chiudi	11
XV2P/11 - Ø36.5 /S - CO001 - Ø30 M6 - Ø30 M6 -SINISTRA 05.X2P00.4701EOOA	98,20 - 47,20 - 0,00 chiudi	2
XV2P/30 - Ø36.5 /D - CO001 - Ø40 M8 - Ø40 M8 -DESTRA 05.X2P00.5902EQPA	130,20 - 63,20 - 0,00 chiudi	2
XV2P/26 - Ø36.5 /S - CO001 - Ø40 M8 - Ø40 M8 -SINISTRA 05.X2P00.5701EQPA	122,20 - 59,20 - 0,00 chiudi	3
XV2P/11 - Ø36.5 /D - CO001 - Ø30 M6 - Ø30 M6 -DESTRA 05.X2P00.4702EOOA	98,20 - 47,20 - 0,00 chiudi	4
XV2P/34 - Ø36.5 /S - CO001 - Ø40 M8 - Ø40 M8 -SINISTRA 05.X2P00.6101EQPA	137,20 - 66,70 - 0,00 chiudi	4
XV2P/40 - Ø36.5 /S - CO001 - Ø40 M8 - Ø40 M8 -SINISTRA 05.X2P00.6301EQPA	146,20 - 71,20 - 0,00 chiudi	4
XV2P/17 - Ø36.5 /S - CO001 - Ø40 M8 - Ø30 M6 -SINISTRA 05.X2P00.5101EPOA	108,20 - 52,20 - 0,00 chiudi	5
XV2P/30 - Ø36.5 /S - CO001 - Ø40 M8 - Ø40 M8 -SINISTRA 05.X2P00.5901EQPA	130,20 - 63,20 - 0,00 chiudi	5
XV2P/4 - Ø36.5 /S - CO001 - Ø30 M6 - Ø30 M6 -SINISTRA 05.X2P00.4101EOOA	87,20 - 41,70 - 0,00 chiudi	5
XV2P/22 - Ø36.5 /D - CO001 - Ø40 M8 - Ø30 M6 -DESTRA 05.X2P00.5502EPOA	118,20 - 57,20 - 0,00 chiudi	6
XV2P/4 - Ø36.5 /D - CO001 - Ø30 M6 - Ø30 M6 -DESTRA 05.X2P00.4102EOOA	87,20 - 41,70 - 0,00 chiudi	6
Special-XV2P/11 - Ø36.5 /D - SCF03 - Ø40 M8 - Ø30 M6 - 05.X2P00.4702HPOA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/11 - Ø36.5 /S - CO001 - VCHR Ø40 M8 - Ø30 M6 - . 05.X2P00.4701EPOA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/11-Ø52 BH/D-CF001- SENZA GIUNTO - Z-Z - IN+OUT 1/2"BSP 05.X2P00.4732CZZD	0,00 - 0,00 - 0,00 chiudi	-
XV2P/14 - Ø82.5 SAE /D - SCF04 -VITON- Ø40 M6 # - Ø35 M6 # 05.X2PVI.4952ISRA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/14 - Ø82.5 SAE /D - SCF04- Ø40 M6 # - Ø35 M6 # 05.X2P00.4952ISRA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/19 - Ø36.5 /D - CO001 - Ø40 M8 - Ø30 M6 -DESTRA 05.X2P00.5302EPOA	112,20 - 54,20 - 0,00 chiudi	-
XV2P/19 - Ø36.5 /S - CO001 - Ø40 M8 - Ø30 M6 - SINISTRA 05.X2P00.5301EPOA	112,20 - 54,20 - 0,00 chiudi	-
XV2P/22 - Ø36.5 /D - CO001 - Ø40 M8 - Ø40 M8 -DESTRA 05.X2P00.5502EPPA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/22 - Ø36.5 /S - CO001 - Ø3/4 BSP - Ø1/2 BSP -SINISTRA 05.X2P00.5501ECBA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/22 - Ø36.5 /S - CO001 - Ø40 M8 - Ø30 M6 -SINISTRA 05.X2P00.5501EPOA	118,20 - 57,20 - 0,00 chiudi	-
XV2P/22 - Ø52 HY /D - CF001 - Ø40 M6 Ø35 M6 Destra 05.X2P00.5562CSRA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/22 - Ø80 /S - CO002 - Ø40 M6 - Ø35 M6 -SINISTRA 05.X2P00.5541FSRA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/22 - Ø82.5 SAE /D -Asp Ø40 - Mand Ø35 SCF04 M6 DESTRA 05.X2P00.5552IPOA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/26 - Special - Ø36.5 /D - CO001 - 3/4" BSP - 1/2" BSP 05.X2P00.570ECBA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/26 - Ø82.5 SAE /D - CI002 - Ø1" BSP-Ø3/4" BSP -DESTRA 05.X2P00.5752BDCA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/30 - Ø36.5 /D - CO001 - 1" BSP - 3/4" BSP 05.X2P00.5902EDCA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/34 - Ø36.5 /D - CO001 - Ø1" BSP - Ø3/4" BSP-DESTRA 05.X2P00.6102EDCA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/34 - Ø52HY/D - CF001 - Ø40 M8 - Ø40 M8 -DESTRA 05.X2P00.6162CQPA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/40 - Ø36.5 /D - CI001 - 1" BSP - 3/4" BSP -DESTRA 05.X2P00.6302ADCA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/40 - Ø36.5 /D - CO001 - Ø40 M8 - Ø40 M8 -DESTRA 05.X2P00.6302EQPA	146,20 - 71,20 - 0,00 chiudi	-
XV2P/40 - Ø36.5 /D - CO001 -DESTRA 05.X2P00.6302EDCA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/6 - Ø36.5 /D - CO001 - Ø30 M6 - Ø30 M6 -DESTRA 05.X2P00.4302EOOA	90,20 - 43,20 - 0,00 chiudi	-
XV2P/6 - Ø36.5 /S - CO001 - Ø30 M6 - Ø30 M6 -SINISTRA 05.X2P00.4301EOOA	90,20 - 43,20 - 0,00 chiudi	-
XV2P/6 - Ø82.5 SAE/D - SCF04 - 1/2" BSP - 1/2" BSP -DESTRA 05.X2P00.4352IBBA	0,00 - 0,00 - 0,00 chiudi	-
XV2P/9 - Ø82.5 SAE/D - SCF04 - 1/2" BSP - 1/2" BSP -DESTRA 05.X2P00.4552IBBA	0,00 - 0,00 - 0,00 chiudi	-
