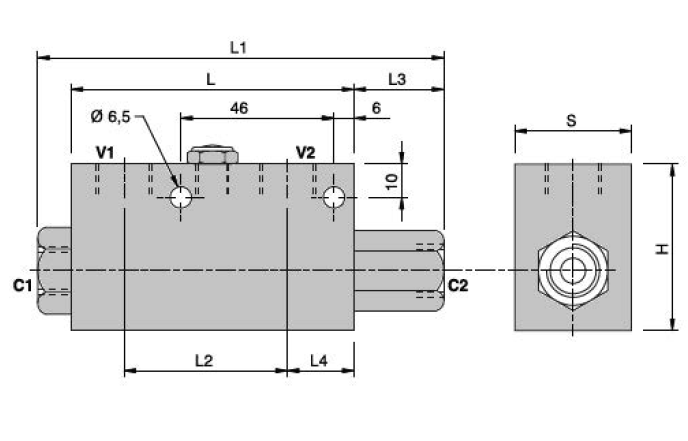

USE Valve used to lock a cylinder in place in one direction, allowing flow in one direction and preventing it in the opposite direction until pilot pressure is applied. The separate piloting makes it insensitive to backpressure on the V2 line. It is recommended that they be mounted on 2 or more cylinders in parallel with a sequence valve, thus ensuring a balanced and simultaneous load drop. MATERIALS AND CHARACTERISTICS Body: aluminium, steel Internal components: thermally hardened and ground steel Seals: BUNA N standard Sealing: guided cone. Negligible leakage MOUNTING Connect V1 and V2 to the supply and C1 and C2 to the actuator as shown in the diagram.
