COMPLETE CATALOGUE End Plugs End Plug CF 30 Items

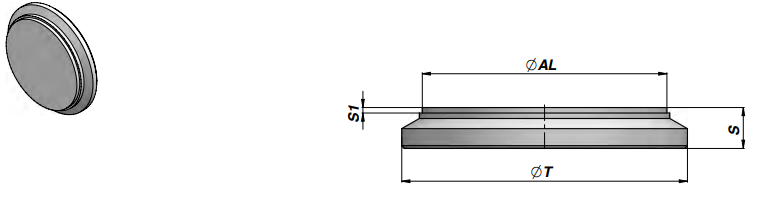

DRAWINGS

The endplug of the series CF is a semi-finished product suitable to manufacture single and double acting hydraulic cylinders. Made of steel Fe510C, it is a basic component in our standard cylinders HM0. This item is very flexible and it is particularly used in the mobile, in the agricultural and in the industrial sectors.

MATERIAL STEEL S355J0 ( Fe510C ) - S355JR ( A105 )

THESE PLUGS CAN BEND UNDER PEAK PRESSURE. WE RECOMMEND TO WELD ENDS TO ACHIEVE EXTRA RIGIDITY OTHERWISE USE INTERNAL END-PLUGS "CFI" TYPE

IN CASE OF CONTINUOUS WORK PLEASE USE "CFPM" END-PLUGS.

End Plug CF YOU CAN REPLACE IT WITH:

Order by:

Avail.:

Brand:

Special Price:

Description	Dimensions(mm)	Material	Avail. (UN)
FONDELLO D. 063-075 05.CF000.00063075	0,00 - 0,00 - 0,00 chiudi	STEEL	-
FONDELLO D. 080-092 05.CF000.00080092	0,00 - 0,00 - 0,00 chiudi	STEEL	996
FONDELLO D. 130-150 05.CF000.00130150	0,00 - 0,00 - 0,00 chiudi	STEEL	4
END-PLUG CF TYPE D. 025-035 (B250) 05.CF000.00025035	25,00 - 35,00 - 7,00 chiudi	STEEL	39
END-PLUG CF TYPE D. 030-040 (B250) 05.CF000.00030040	30,00 - 40,00 - 8,00 chiudi	STEEL	25
END-PLUG CF TYPE D. 032-042 (B250) 05.CF000.00032042	32,00 - 42,00 - 8,00 chiudi	STEEL	1.095
END-PLUG CF TYPE D. 035-045 (B200) 05.CF000.00035045	35,00 - 45,00 - 10,00 chiudi	STEEL	798
END-PLUG CF TYPE D. 040-050 (B150) 05.CF000.00040050	40,00 - 50,00 - 10,00 chiudi	STEEL	890
END-PLUG CF TYPE D. 045-055 (B100) 05.CF000.00045055	45,00 - 55,00 - 10,00 chiudi	STEEL	81
END-PLUG CF TYPE D. 050-060 (B100) 05.CF000.00050060	50,00 - 60,00 - 10,00 chiudi	STEEL	996
END-PLUG CF TYPE D. 055-065 (B50) 05.CF000.00055065	55,00 - 65,00 - 12,00 chiudi	STEEL	32
END-PLUG CF TYPE D. 060-070 (B50) 05.CF000.00060070	60,00 - 70,00 - 12,00 chiudi	STEEL	998
END-PLUG CF TYPE D. 063-073 (B50) 05.CF000.00063073	63,00 - 73,00 - 12,00 chiudi	STEEL	1.003
END-PLUG CF TYPE D. 065-075 (B50) 05.CF000.00065075	65,00 - 75,00 - 12,00 chiudi	STEEL	1.194
END-PLUG CF TYPE D. 065-080 (B50) 05.CF000.00065080	65,00 - 80,00 - 12,00 chiudi	STEEL	14
END-PLUG CF TYPE D. 070-080 (B50) 05.CF000.00070080	70,00 - 80,00 - 12,00 chiudi	STEEL	1.036
END-PLUG CF TYPE D. 070-085 (B25 05.CF000.00070085	70,00 - 85,00 - 12,00 chiudi	STEEL	17
END-PLUG CF TYPE D. 075-090 (B25) 05.CF000.00075090	75,00 - 90,00 - 12,00 chiudi	STEEL	-
END-PLUG CF TYPE D. 080-090 (B25) 05.CF000.00080090	80,00 - 90,00 - 12,00 chiudi	STEEL	36
END-PLUG CF TYPE D. 080-095 (B25) 05.CF000.00080095	80,00 - 95,00 - 12,00 chiudi	STEEL	22
END-PLUG CF TYPE D. 085-100 (B25) 05.CF000.00085100	85,00 - 100,00 - 15,00 chiudi	STEEL	6
END-PLUG CF TYPE D. 090-105 (B25) 05.CF000.00090105	90,00 - 105,00 - 15,00 chiudi	STEEL	996
END-PLUG CF TYPE D. 100-115 (B25) 05.CF000.00100115	100,00 - 115,00 - 15,00 chiudi	STEEL	985
END-PLUG CF TYPE D. 110-125 (B15) 05.CF000.00110125	110,00 - 125,00 - 15,00 chiudi	STEEL	28
END-PLUG CF TYPE D. 110-130 (B15) 05.CF000.00110130	110,00 - 130,00 - 15,00 chiudi	STEEL	-
END-PLUG CF TYPE D. 120-140 (B10) 05.CF000.00120140	120,00 - 140,00 - 18,00 chiudi	STEEL	7
END-PLUG CF TYPE D. 125-145 (B10) 05.CF000.00125145	125,00 - 145,00 - 18,00 chiudi	STEEL	3
END-PLUG CF TYPE D. 140-160 05.CF000.00140160	140,00 - 160,00 - 18,00 chiudi	STEEL	22
END-PLUG CF TYPE D. 150-170 05.CF000.00150170	150,00 - 170,00 - 20,00 chiudi	STEEL	10
END-PLUG CF TYPE FONDELLO D. 160-180 05.CF000.00160180	160,00 - 180,00 - 20,00 chiudi	STEEL	16
